Tour our factory →HN38 Brush cutter
CE-certified vegetation cutting attachment for Excavators — confirm carrier fit, hydraulic requirements, and configuration with HCN engineering.
Models: HN3831
Compatible Carriers: Excavators
Category:
Forestry & Landscaping
HCN HN38 Brush cutter — CE-certified brush cutter attachment for Excavators. OEM-fit brackets, ISO 9001 quality. Request specs, lead time and FOB quote.
CE Certified
ISO 9001:2015
HCN Manufactured
60+ Countries
Get a Free Quote
Factory-direct pricing · Responds within 24 hours
Submit RFQ Form
CE Certified
ISO 9001:2015
60+ Countries
Product Video

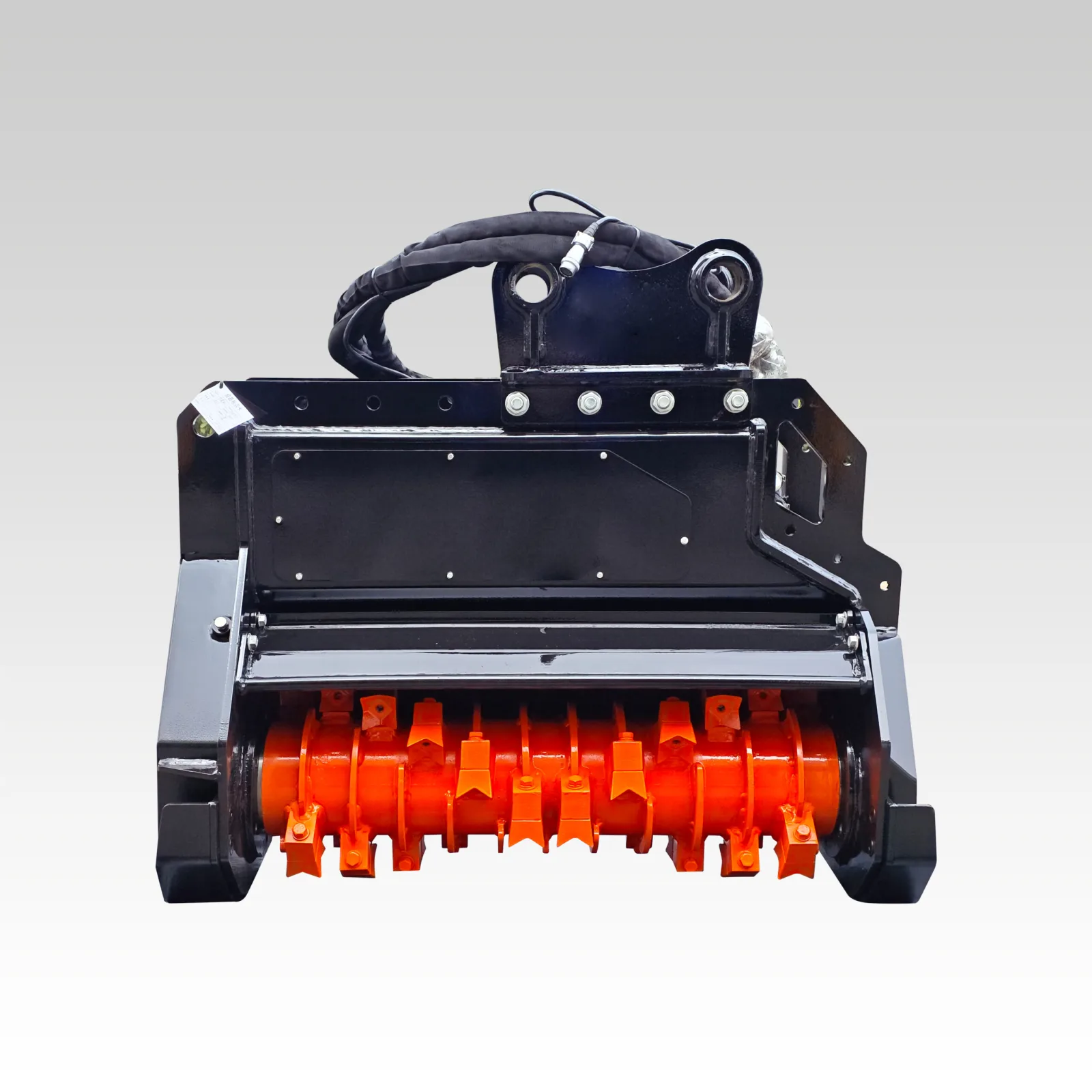

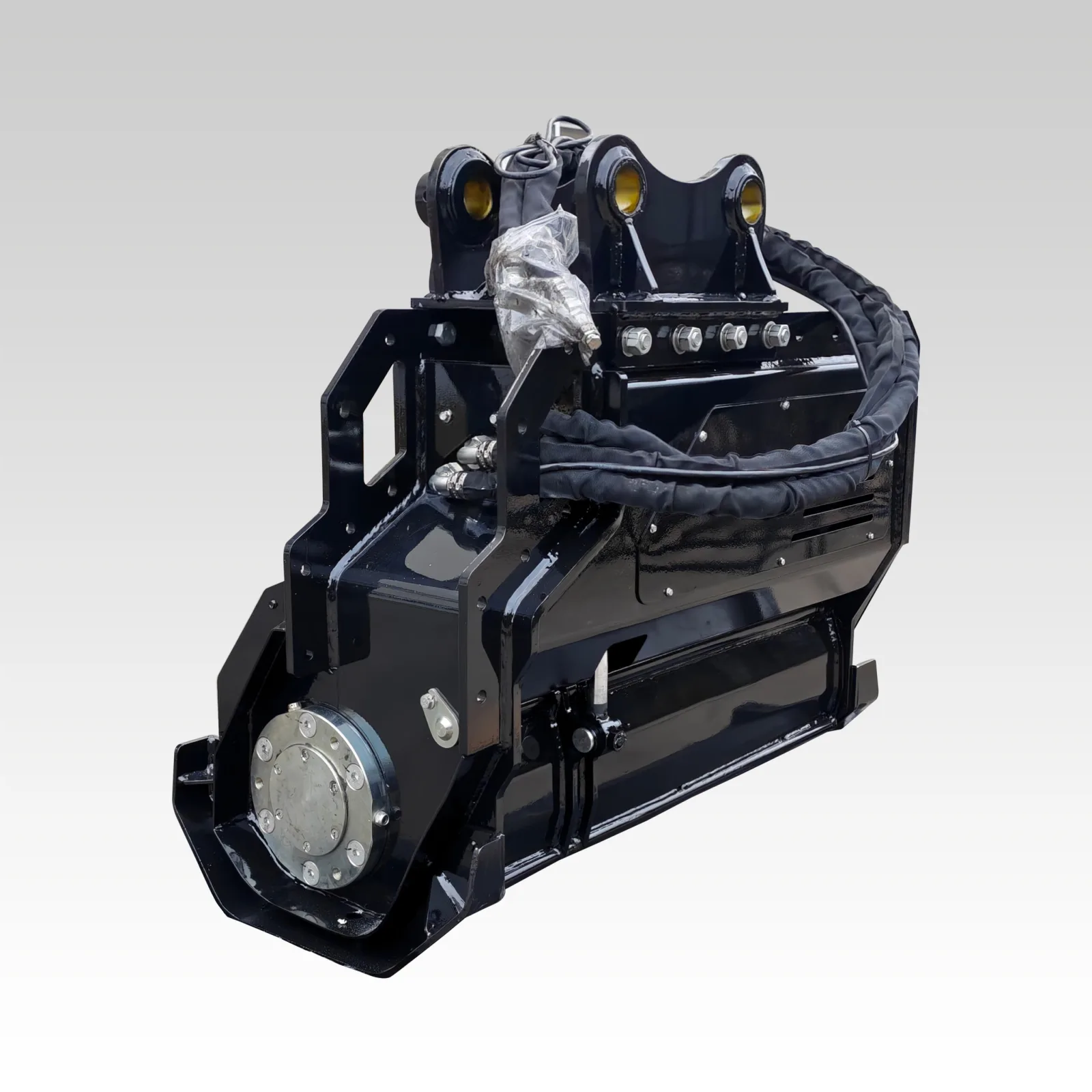

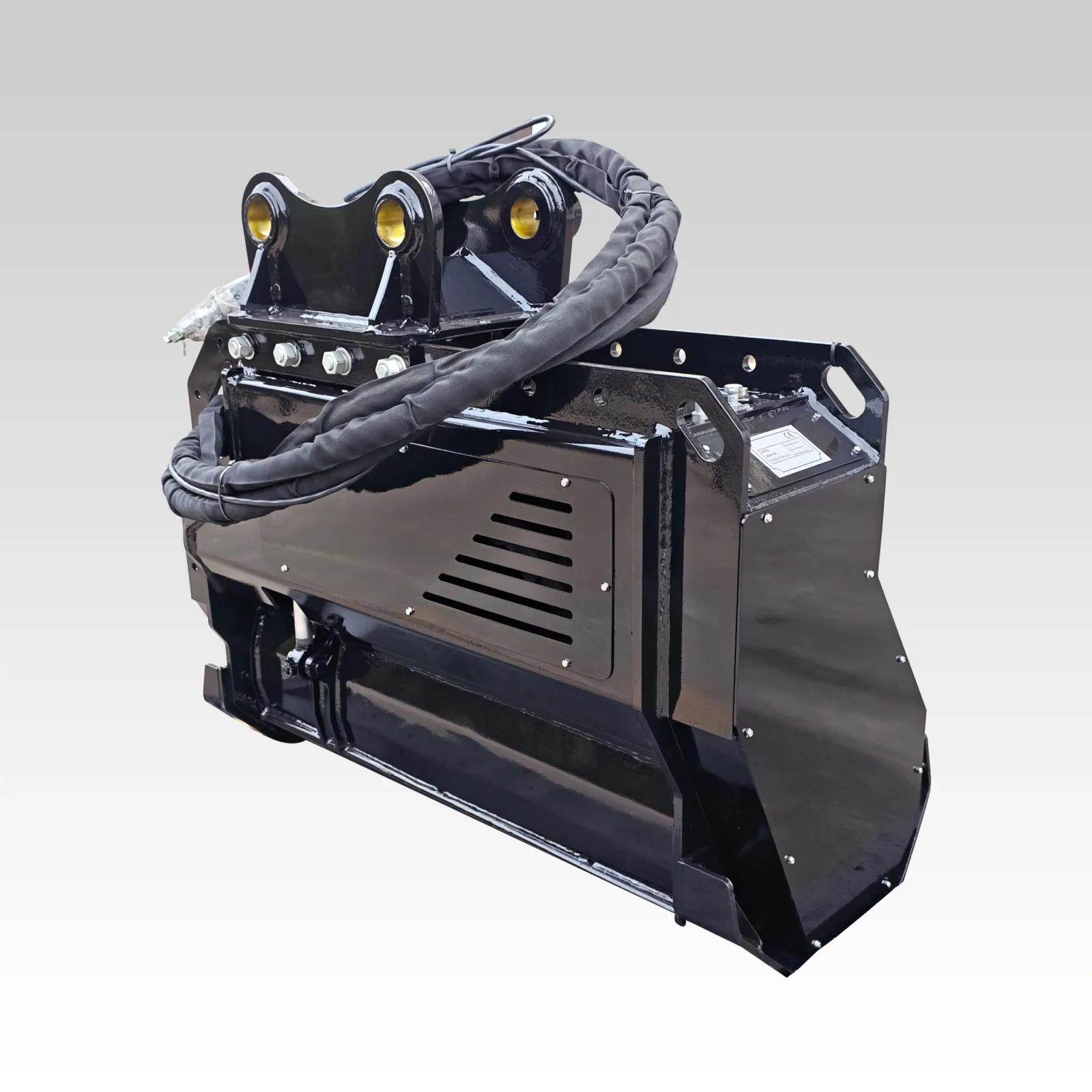

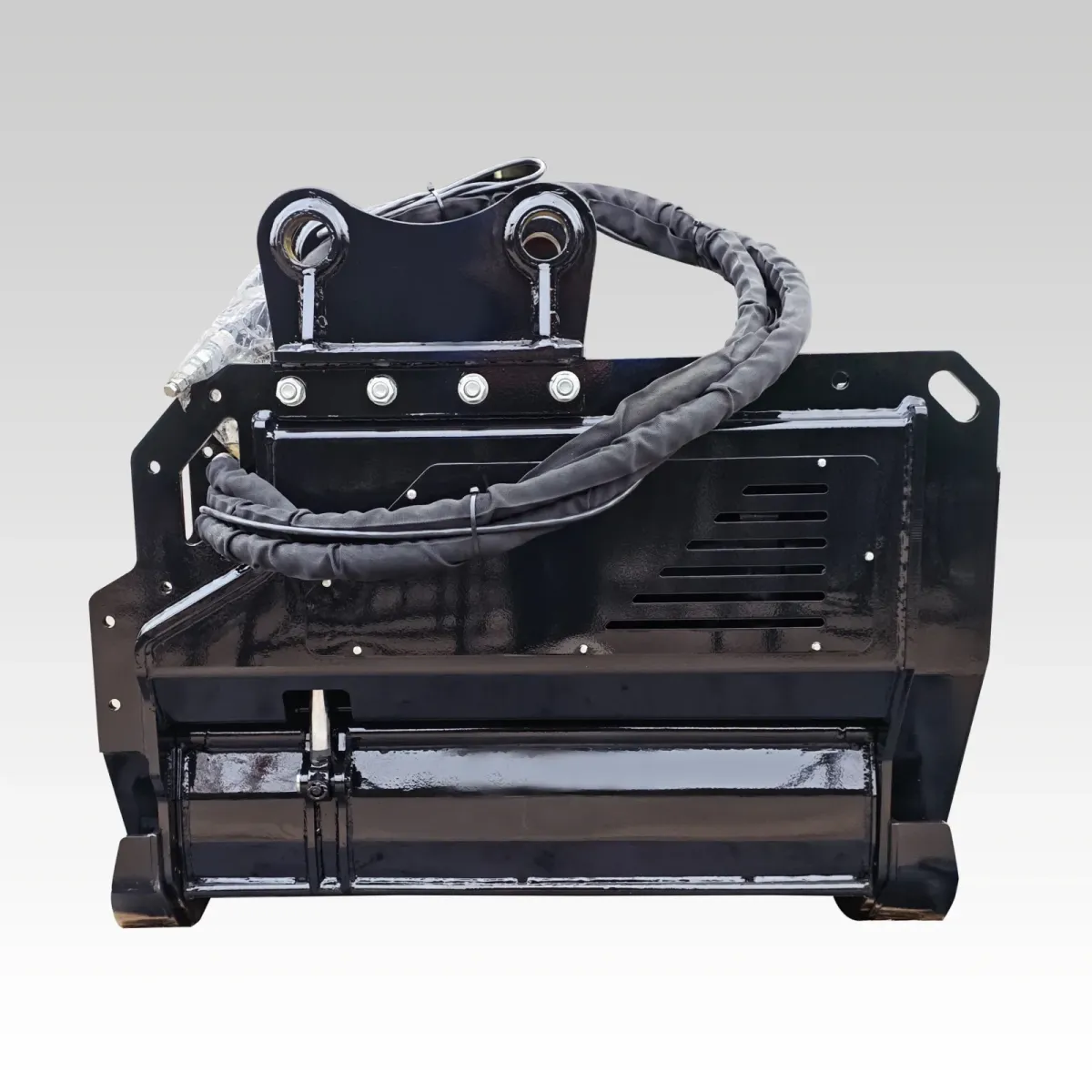

The HN38 Brush cutter from HCN Attachments Manufacture Co., Ltd is a heavy-duty skid steer / loader attachment engineered for global construction, municipal, and industrial OEM applications.
Typical specifications include Overall Width: 540 · Overall Length: 1080 · Overall Height: 1010. Mounting interfaces, hydraulic flow, and working width are configurable to your carrier model.
Request technical drawings and an export quote at hcn-atta.com · CE certified · ISO 9001:2015 · worldwide shipping.
Technical Specifications
| Specification | Value / Range |
|---|---|
| Overall Length (mm) | 1440 |
| Overall Width (mm) | 540 |
| Overall Height (mm) | 1010 |
| Overall Length (Hydraulic thumb not included)(mm) | 1080 |
| Overall Width (Hydraulic thumb not included)(mm) | 540 |
| Overall Height (Hydraulic thumb not included)(mm) | 1010 |
| Weight (Theoretical) (Kg) | 470 |
| Weight (Theoretical) (Hydraulic thumb not included)(Kg) | 385 |
| Hydraulic Flow (l/min)(L/min) | 140 |
| Tree cutting diameter(mm) | 120 |
| Operating Pressure (MPa) | 21 |
| Maximum allowable input pressure(Mpa) | 30 |
| Operating Voltage (V)(Optional)(V) | DC12/24 |
| Optional Accessories | Hydraulic thumb (Not included in standard configuration) |
| Compatible Carriers | 4~8 ton Excavator |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
What Is the HN38 Brush cutter?
The HCN HN38 Brush cutter is a vegetation cutting attachment for Excavators. Confirm the carrier model, mounting interface, hydraulic flow and operating pressure before ordering; HCN engineering provides a fitment check against the submitted machine data.
Models covered on this page: HN3831. Use the specification table above to compare published values, then request confirmation for the final configuration.
HN38 Brush cutter Carrier Compatibility
- Compatible carriers
- Excavators
- OEM brands supported
- Fitment is confirmed from the carrier make, model, mounting dimensions, operating weight and auxiliary hydraulic data supplied with the RFQ.
- Published carrier group: Excavators.
- Send carrier make, model, operating weight, coupler type and mounting dimensions for confirmation before PO release.
- Model range covered on this page: HN3831.
HN38 Brush cutter — Frequently Asked Questions
The HN38 Brush cutter is listed for Excavators. Final fitment must be checked against the carrier make, model, operating weight, coupler type, mounting dimensions, auxiliary hydraulic flow and pressure before production.
This page covers model designation HN3831. Compare the model columns in the specification table and request confirmation for the exact configuration included in your quotation.
The published values are Overall Length (Hydraulic thumb not included)(mm): 1080; Overall Width (Hydraulic thumb not included)(mm): 540; Overall Height (Hydraulic thumb not included)(mm): 1010; Weight (Theoretical) (Hydraulic thumb not included)(Kg): 385. Confirm that the carrier circuit stays within these model-specific limits; ask HCN to verify any value that varies by model.
Key published working values include Tree cutting diameter(mm): 120. Use the full table for model-by-model values and confirm the required operating condition in the RFQ.
Published transport and installation data include Overall Length (mm): 1440; Overall Width (mm): 540; Overall Height (mm): 1010; Weight (Theoretical) (Kg): 470. Check the selected model against carrier capacity, transport limits and site access.
Certifications
ISO 9001:2015, ISO 14001, ISO 45001, CE conformity on export lines, and National High-Tech Enterprise status. Full documentation available for tender and OEM audit submissions.
View certifications →Fitment Review
Before production, HCN checks the submitted carrier model, mounting dimensions, operating weight, hydraulic flow and pressure against the requested configuration.
Submit machine details →Need help confirming fitment? Procurement FAQ
Factory-Direct Inquiry
Get a Quote for HN38 Brush cutter
Include your machine model, working conditions, and destination country — our sales engineers respond within 24 business hours with pricing, lead time, and bracket fit confirmation.
