Tour our factory →0524 Hedge trimmer
CE-certified vegetation cutting attachment for Skid Steer Loaders — confirm carrier fit, hydraulic requirements, and configuration with HCN engineering.
Models: 0524A60 · 0524B60
Compatible Carriers: Skid Steer Loaders
Category:
Forestry & Landscaping
HCN 0524 Hedge trimmer — CE-certified brush cutter attachment for export. Request specs, lead time and FOB quote.
CE Certified
ISO 9001:2015
HCN Manufactured
60+ Countries
Get a Free Quote
Factory-direct pricing · Responds within 24 hours
Submit RFQ Form
CE Certified
ISO 9001:2015
60+ Countries
Product Video

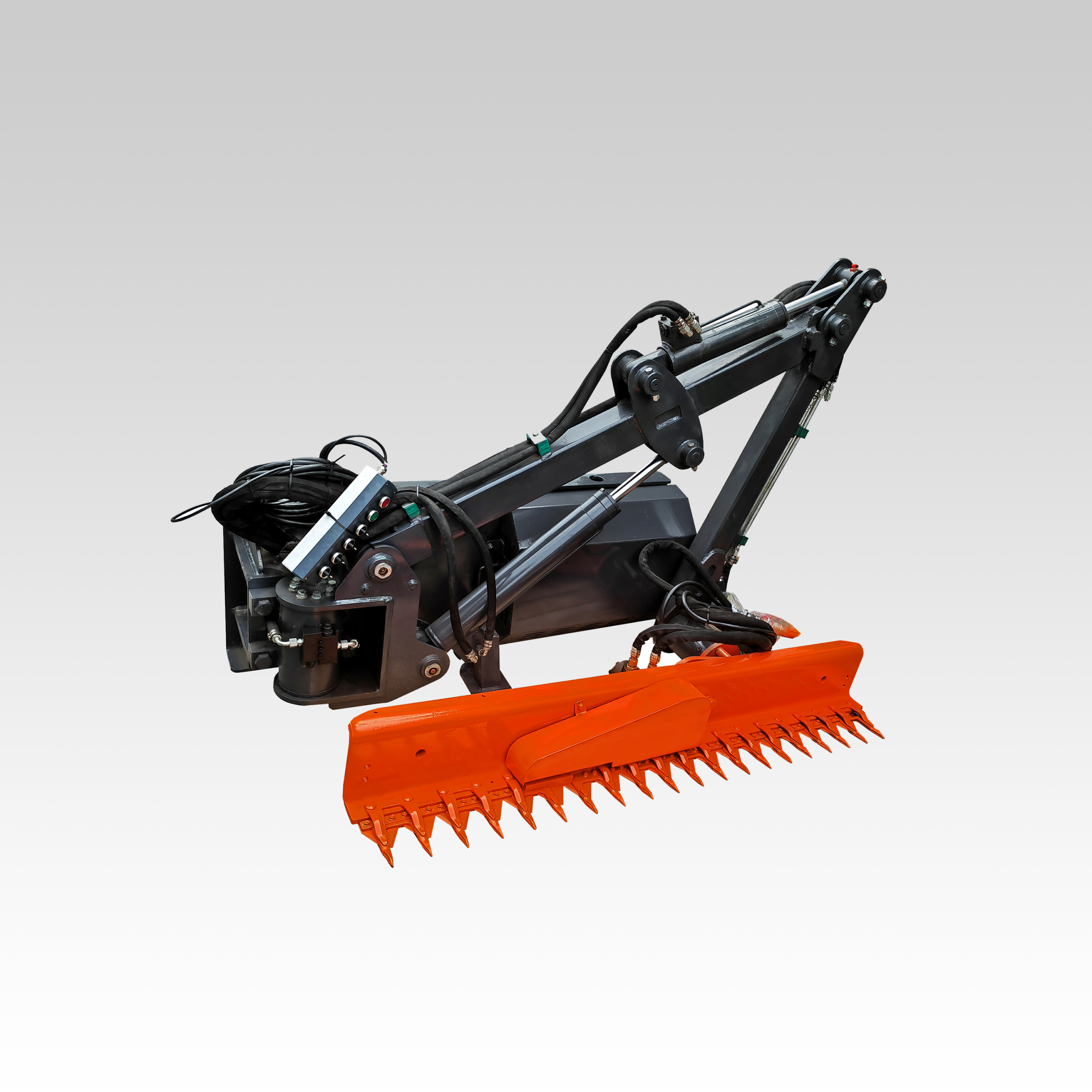

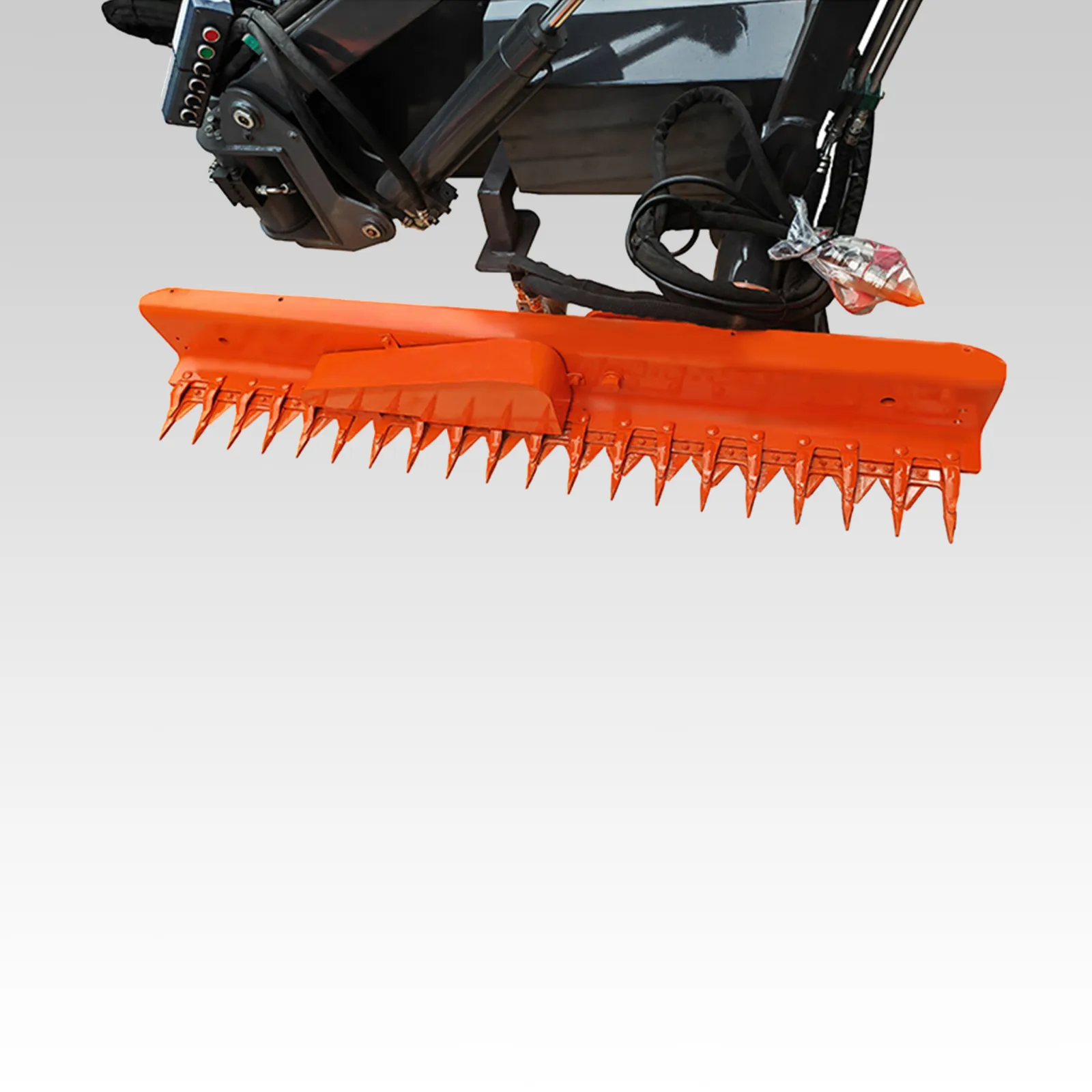

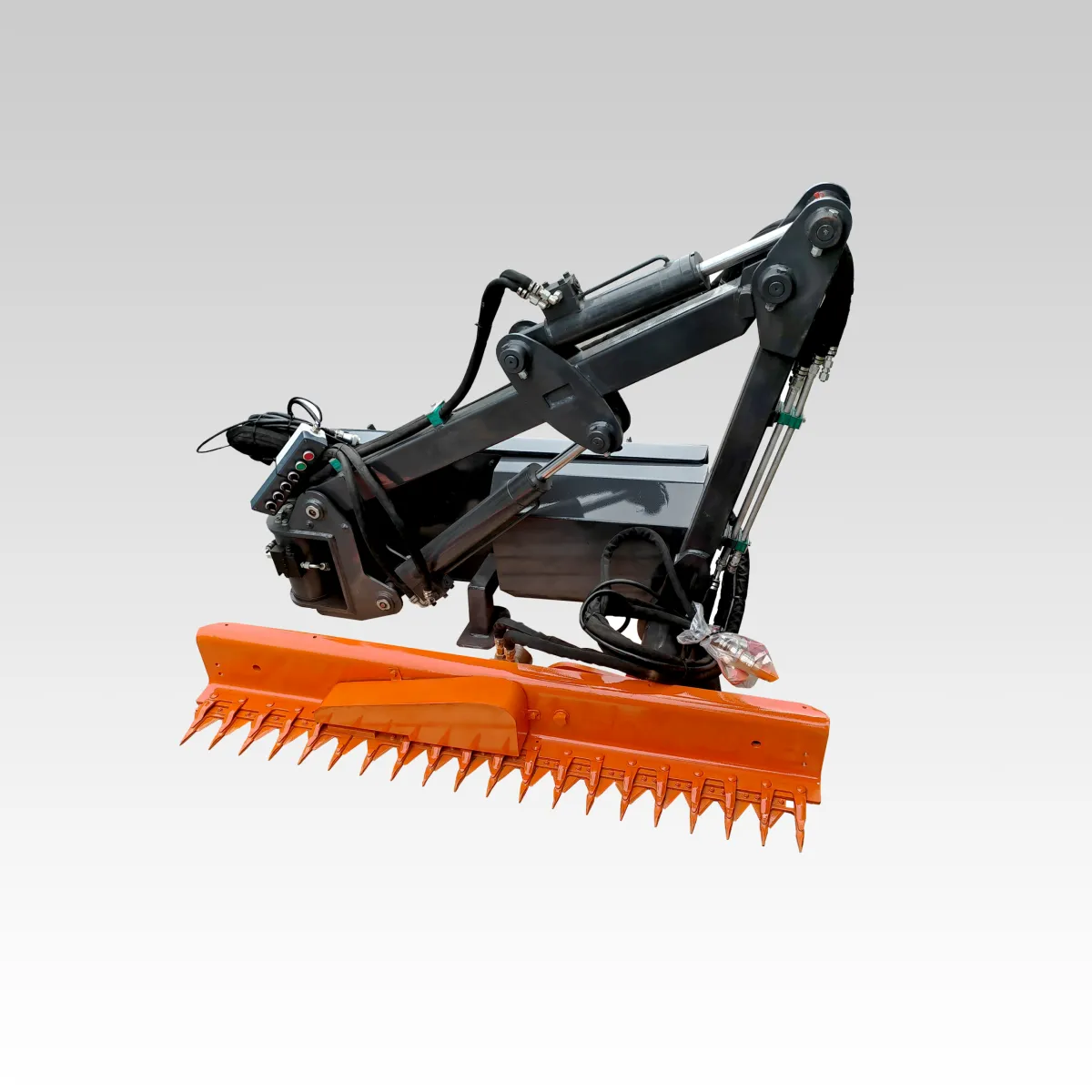

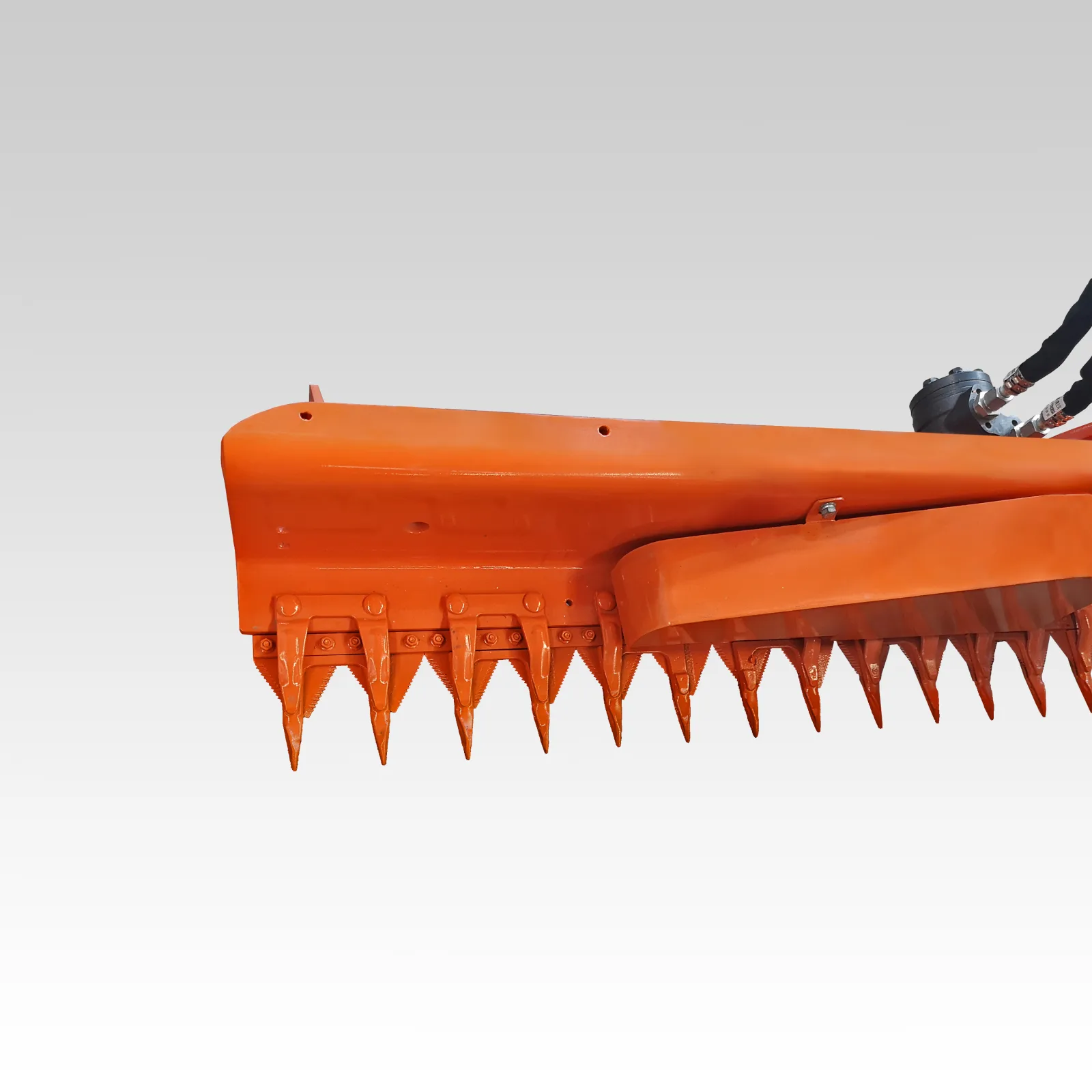

The 0524 Hedge trimmer from HCN Attachments Manufacture Co., Ltd is a heavy-duty skid steer / loader attachment engineered for global construction, municipal, and industrial OEM applications.
Typical specifications include Overall Width: 2300 / 1790 · Overall Length: 1100 / 1100 · Overall Height: 1400 / 1900. Mounting interfaces, hydraulic flow, and working width are configurable to your carrier model.
Request technical drawings and an export quote at hcn-atta.com · CE certified · ISO 9001:2015 · worldwide shipping.
Technical Specifications
| Specification | 0524A60 | 0524B60 |
|---|---|---|
| Overall Width (Transport dimensions)(mm) | 2300 | 1790 |
| Overall Height (Transport dimensions)(mm) | 1400 | 1900 |
| Overall Length (Transport dimensions) (mm) | 1100 | 1100 |
| Trimming width (mm) | 1500 | 1500 |
| Maximum branch trimming diameter (mm) | 30 | 30 |
| Horizontal cut range (mm) | Vertical (Distance from attachment frame bottom)： -670~2890 Horizontal (Distance from attachment frame right (as shown) Side)：1280~4380 | Vertical (Distance from attachment frame bottom)： -820~2380 Horizontal (Distance from attachment frame right side (as shown))： -130-2930 |
| Vertical cut range(mm) | Vertical (Distance from attachment frame bottom)： -2700~4940 Horizontal (Distance from attachment frame right (as shown) Side)：480~2350 | Vertical (Distance from attachment frame bottom)： -1250~3470 Horizontal (Distance from attachment frame right side (as shown))： 1000~2930 |
| Weight (Theoretical) (Kg) | 305 | 310 |
| Operating Pressure (MPa) | 16 | 16 |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
What Is the 0524 Hedge trimmer?
The HCN 0524 Hedge trimmer is a vegetation cutting attachment for Skid Steer Loaders. Confirm the carrier model, mounting interface, hydraulic flow and operating pressure before ordering; HCN engineering provides a fitment check against the submitted machine data.
Models covered on this page: 0524A60, 0524B60. Use the specification table above to compare published values, then request confirmation for the final configuration.
0524 Hedge trimmer Carrier Compatibility
- Compatible carriers
- Skid Steer Loaders
- OEM brands supported
- Fitment is confirmed from the carrier make, model, mounting dimensions, operating weight and auxiliary hydraulic data supplied with the RFQ.
- Published carrier group: Skid Steer Loaders.
- Send carrier make, model, operating weight, coupler type and mounting dimensions for confirmation before PO release.
- Model range covered on this page: 0524A60, 0524B60.
0524 Hedge trimmer — Frequently Asked Questions
The 0524 Hedge trimmer is listed for Skid Steer Loaders. Final fitment must be checked against the carrier make, model, operating weight, coupler type, mounting dimensions, auxiliary hydraulic flow and pressure before production.
This page covers model designations 0524A60, 0524B60. Compare the model columns in the specification table and request confirmation for the exact configuration included in your quotation.
The published values are Operating Pressure (MPa): 16 / 16. Confirm that the carrier circuit stays within these model-specific limits; ask HCN to verify any value that varies by model.
Key published working values include Maximum branch trimming diameter (mm): 30 / 30; Horizontal cut range (mm): Vertical (Distance from attachment frame bottom)： -670~2890 Horizontal (Distance from attachment frame right (as shown) Side)：1280~4380 / Vertical (Distance from attachment frame bottom)： -820~2380 Horizontal (Distance from attachment frame right side (as shown))： -130-2930; Vertical cut range(mm): Vertical (Distance from attachment frame bottom)： -2700~4940 Horizontal (Distance from attachment frame right (as shown) Side)：480~2350 / Vertical (Distance from attachment frame bottom)： -1250~3470 Horizontal (Distance from attachment frame right side (as shown))： 1000~2930. Use the full table for model-by-model values and confirm the required operating condition in the RFQ.
Published transport and installation data include Overall Width (Transport dimensions)(mm): 2300 / 1790; Overall Height (Transport dimensions)(mm): 1400 / 1900; Overall Length (Transport dimensions) (mm): 1100 / 1100; Weight (Theoretical) (Kg): 305 / 310. Check the selected model against carrier capacity, transport limits and site access.
Certifications
ISO 9001:2015, ISO 14001, ISO 45001, CE conformity on export lines, and National High-Tech Enterprise status. Full documentation available for tender and OEM audit submissions.
View certifications →Fitment Review
Before production, HCN checks the submitted carrier model, mounting dimensions, operating weight, hydraulic flow and pressure against the requested configuration.
Submit machine details →Need help confirming fitment? Procurement FAQ
Factory-Direct Inquiry
Get a Quote for 0524 Hedge trimmer
Include your machine model, working conditions, and destination country — our sales engineers respond within 24 business hours with pricing, lead time, and bracket fit confirmation.
