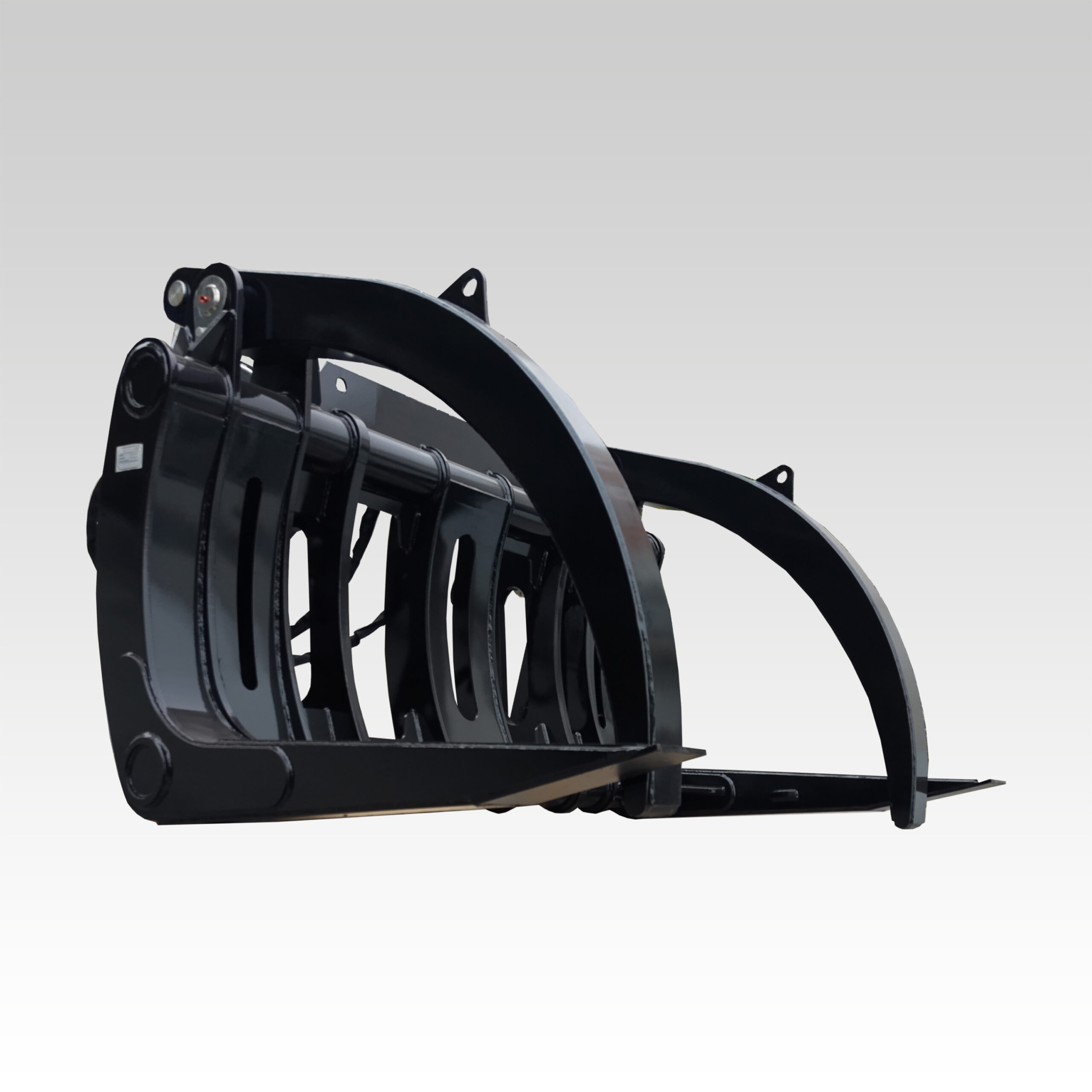

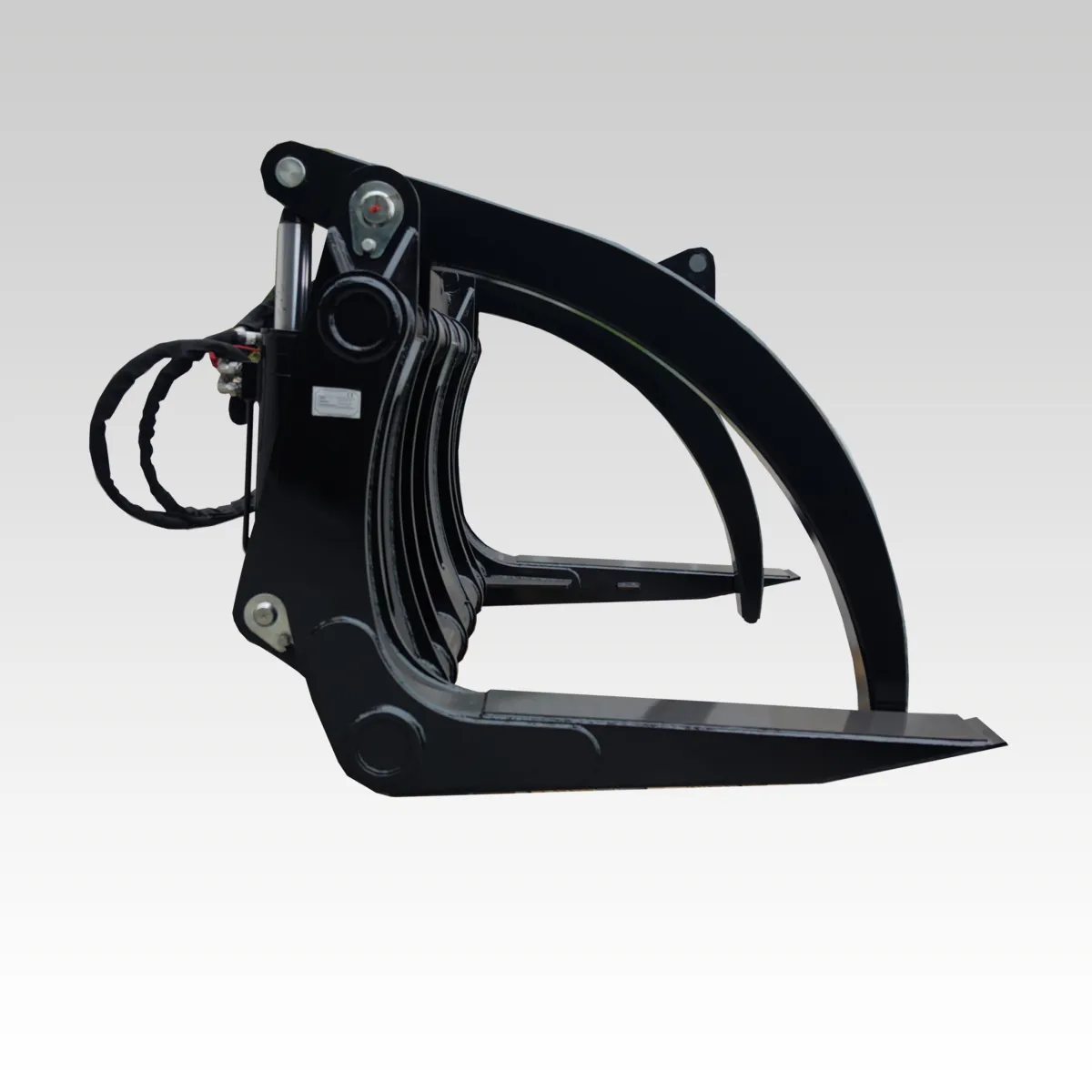

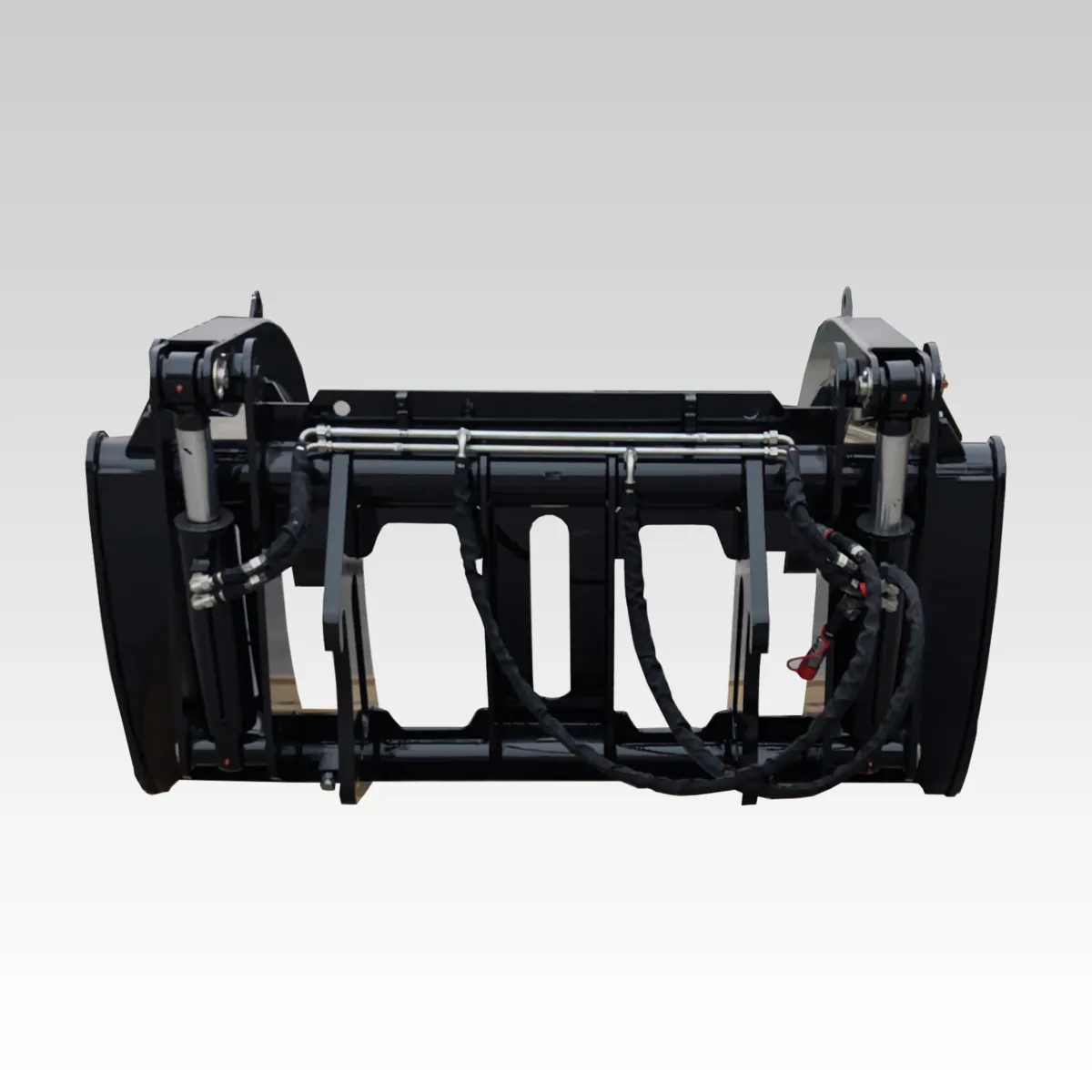

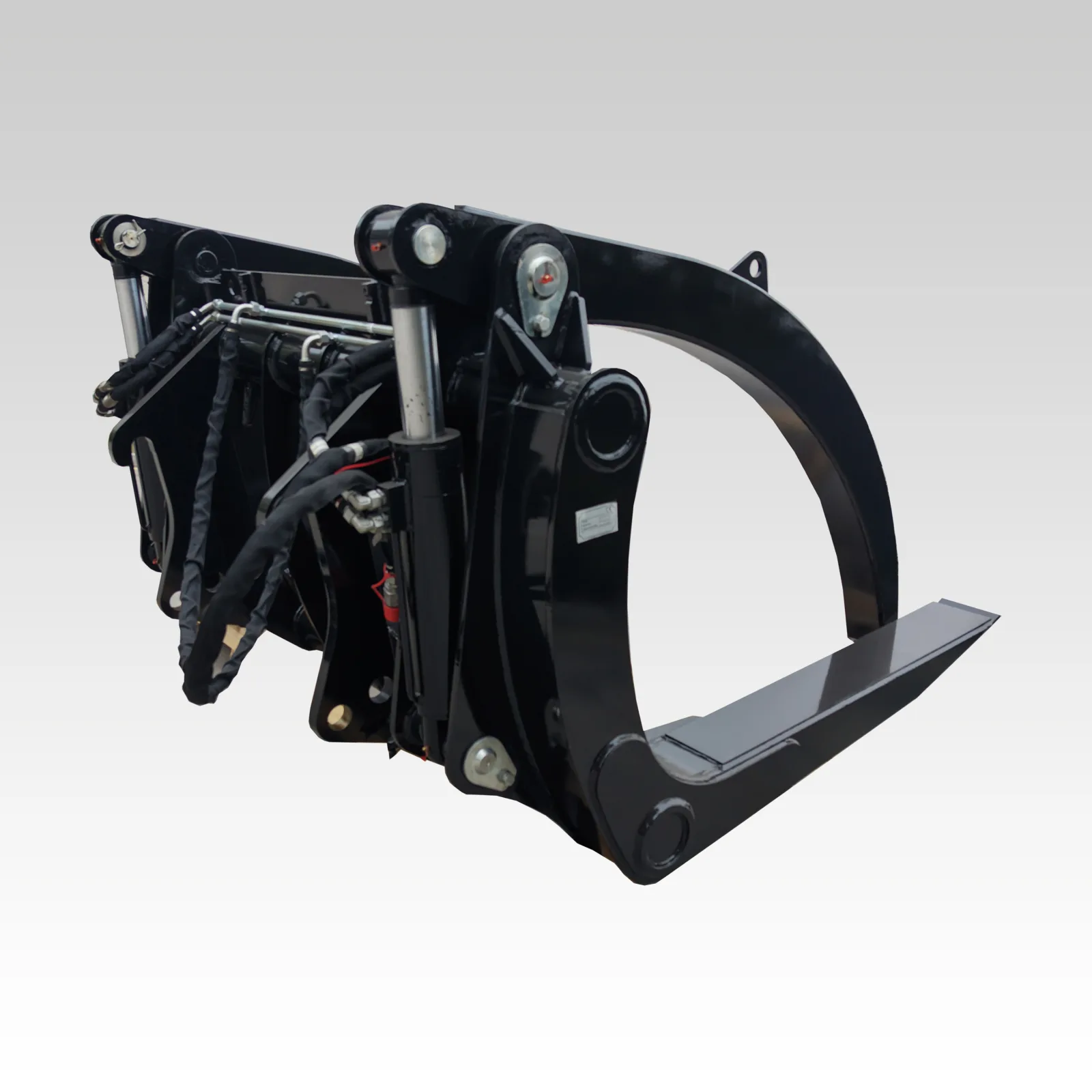

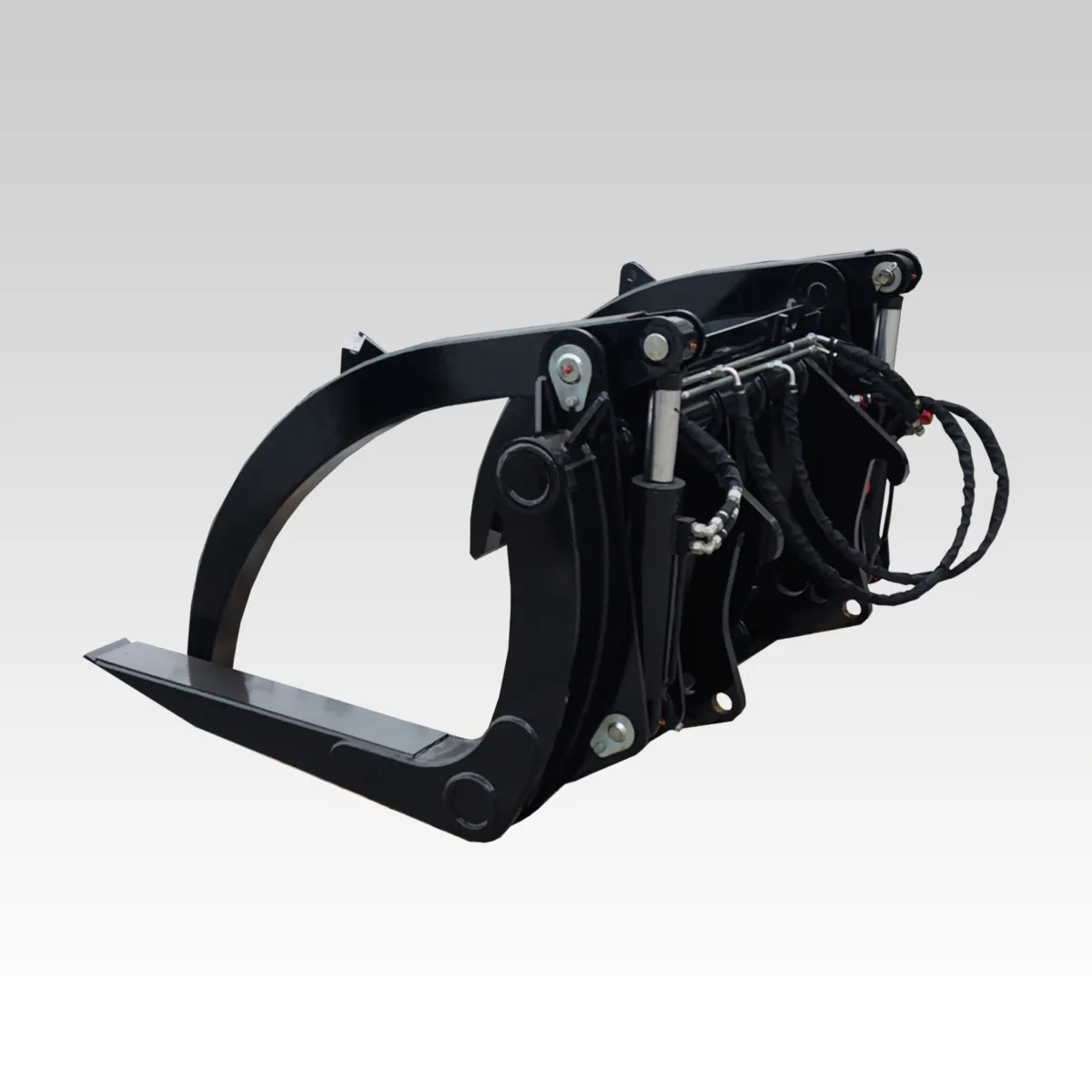

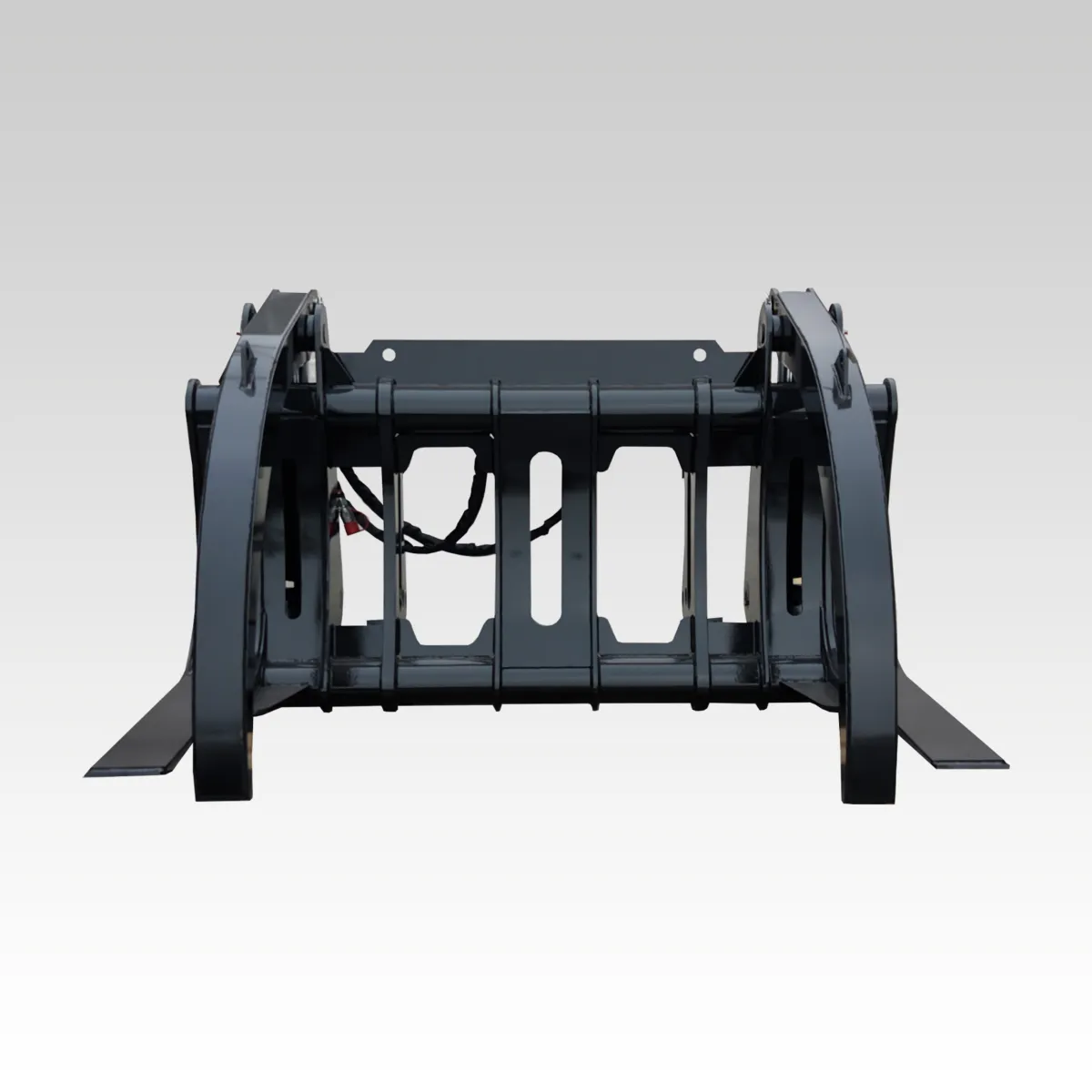

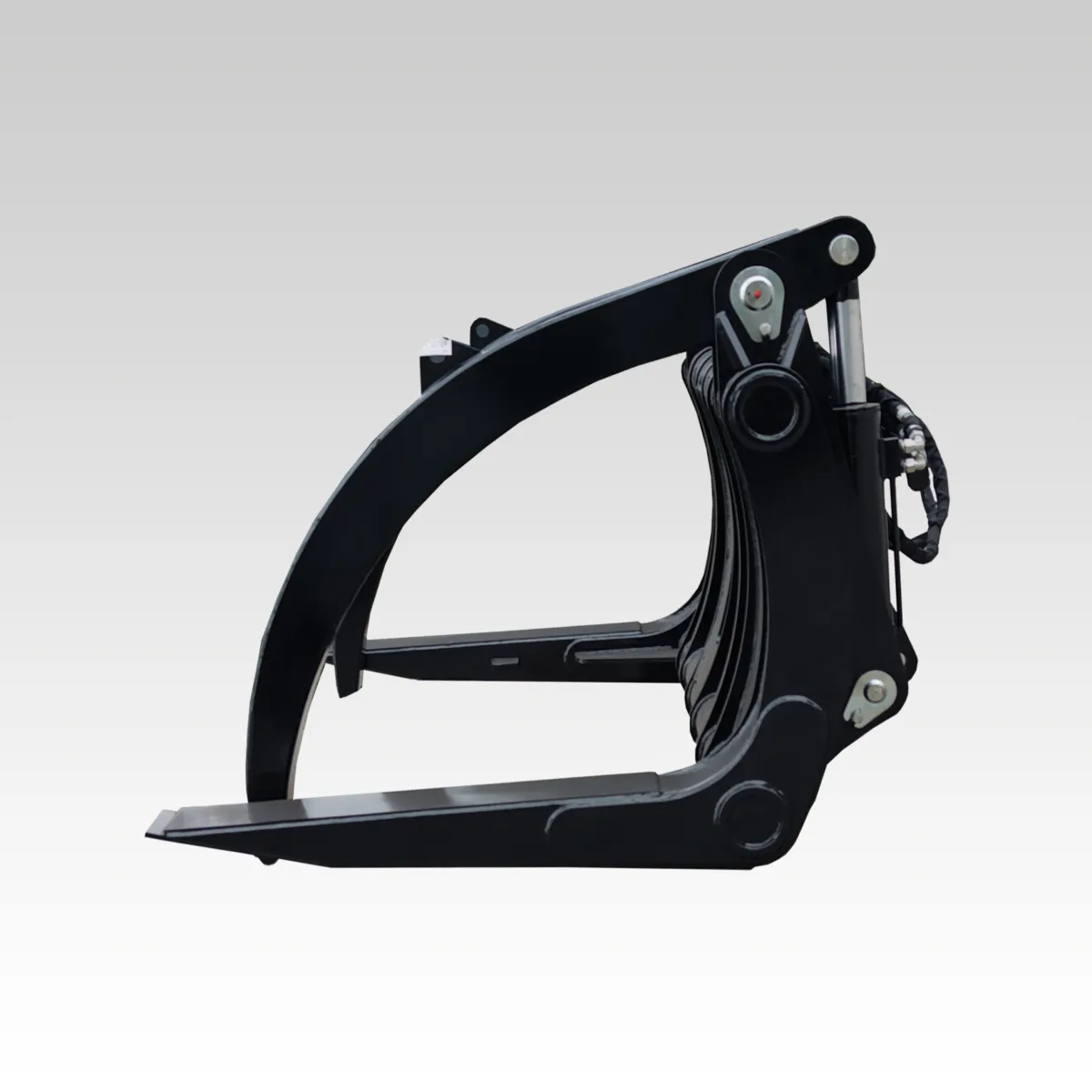

Tour our factory →BM06 Log Clamp Fork
CE-certified hydraulic grapple for Wheel Loaders — confirm carrier fit, hydraulic requirements, and configuration with HCN engineering.
Models: BM0630 · BM0650 · BM06D50 · BM06D70
Compatible Carriers: Wheel Loaders
Category:
Forestry & Landscaping
HCN BM06 Log Clamp Fork — CE-certified hydraulic grapple attachment for export. Request specs, lead time and FOB quote.
CE Certified
ISO 9001:2015
HCN Manufactured
60+ Countries
Get a Free Quote
Factory-direct pricing · Responds within 24 hours
Submit RFQ Form
CE Certified
ISO 9001:2015
60+ Countries
The BM06 Log Clamp Fork from HCN Attachments Manufacture Co., Ltd is a heavy-duty skid steer / loader attachment engineered for global construction, municipal, and industrial OEM applications.
Typical specifications include Overall Width: 1480 / 1850 · Overall Length: 2300 / 2300 · Overall Height: 1350 / 1455. Mounting interfaces, hydraulic flow, and working width are configurable to your carrier model.
Request technical drawings and an export quote at hcn-atta.com · CE certified · ISO 9001:2015 · worldwide shipping.
Technical Specifications
| Specification | BM0630 | BM0650 | BM06D50 | BM06D70 |
|---|---|---|---|---|
| Overall Width (mm) | 1480 | 1850 | 1750 | 2040 |
| Overall Length (mm) | 2300 | 2300 | 2300 | 2700 |
| Overall Height (mm) | 1350 | 1455 | 1600 | 1738 |
| Maximum opening(mm) | 1500 | 1750 | 1900 | 1780 |
| Maximum round log grip(mm) | 750 | 875 | \\\\\\\\\\\\\\\\ | \\\\\\\\\\\\\\\\ |
| Minimum round log grip(mm) | 635 | 635 | 1000 | 1030 |
| Weight (incl. Mount) (Kg) | 1050 | 1527 | 1460 | 2100 |
| Maximum Allowable Pressure (MPa) | 21 | 21 | 21 | 21 |
| ApplicableFlow Rate(L/min) | 50-70 | 50-70 | 50-70 | 60-80 |
| Compatible Carrier | 3T Wheel loader | 5T Wheel loader | 5T Wheel loader | 7T Wheel loader |
| Clamping type | Staggered tooth design | Staggered tooth design | Interlocking tooth design | Interlocking tooth design |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
What Is the BM06 Log Clamp Fork?
The HCN BM06 Log Clamp Fork is a hydraulic grapple for Wheel Loaders. Confirm the carrier model, mounting interface, hydraulic flow and operating pressure before ordering; HCN engineering provides a fitment check against the submitted machine data.
Models covered on this page: BM0630, BM0650, BM06D50, BM06D70. Use the specification table above to compare published values, then request confirmation for the final configuration.
BM06 Log Clamp Fork Carrier Compatibility
- Compatible carriers
- Wheel Loaders
- OEM brands supported
- Fitment is confirmed from the carrier make, model, mounting dimensions, operating weight and auxiliary hydraulic data supplied with the RFQ.
- Published carrier group: Wheel Loaders.
- Send carrier make, model, operating weight, coupler type and mounting dimensions for confirmation before PO release.
- Model range covered on this page: BM0630, BM0650, BM06D50, BM06D70.
BM06 Log Clamp Fork — Frequently Asked Questions
The BM06 Log Clamp Fork is listed for Wheel Loaders. Final fitment must be checked against the carrier make, model, operating weight, coupler type, mounting dimensions, auxiliary hydraulic flow and pressure before production.
This page covers model designations BM0630, BM0650, BM06D50, BM06D70. Compare the model columns in the specification table and request confirmation for the exact configuration included in your quotation.
The published values are Maximum Allowable Pressure (MPa): 21 / 21 / 21 / 21; ApplicableFlow Rate(L/min): 50-70 / 50-70 / 50-70 / 60-80. Confirm that the carrier circuit stays within these model-specific limits; ask HCN to verify any value that varies by model.
Published transport and installation data include Overall Width (mm): 1480 / 1850 / 1750 / 2040; Overall Length (mm): 2300 / 2300 / 2300 / 2700; Overall Height (mm): 1350 / 1455 / 1600 / 1738; Weight (incl. Mount) (Kg): 1050 / 1527 / 1460 / 2100. Check the selected model against carrier capacity, transport limits and site access.
Certifications
ISO 9001:2015, ISO 14001, ISO 45001, CE conformity on export lines, and National High-Tech Enterprise status. Full documentation available for tender and OEM audit submissions.
View certifications →Fitment Review
Before production, HCN checks the submitted carrier model, mounting dimensions, operating weight, hydraulic flow and pressure against the requested configuration.
Submit machine details →Need help confirming fitment? Procurement FAQ
Factory-Direct Inquiry
Get a Quote for BM06 Log Clamp Fork
Include your machine model, working conditions, and destination country — our sales engineers respond within 24 business hours with pricing, lead time, and bracket fit confirmation.
