CE-certified BM59 Hydraulic Cylinder Gripper for Wheel Loaders — factory-direct from HCN Attachments, OEM-fit engineering, worldwide shipping.
Models: BM5924

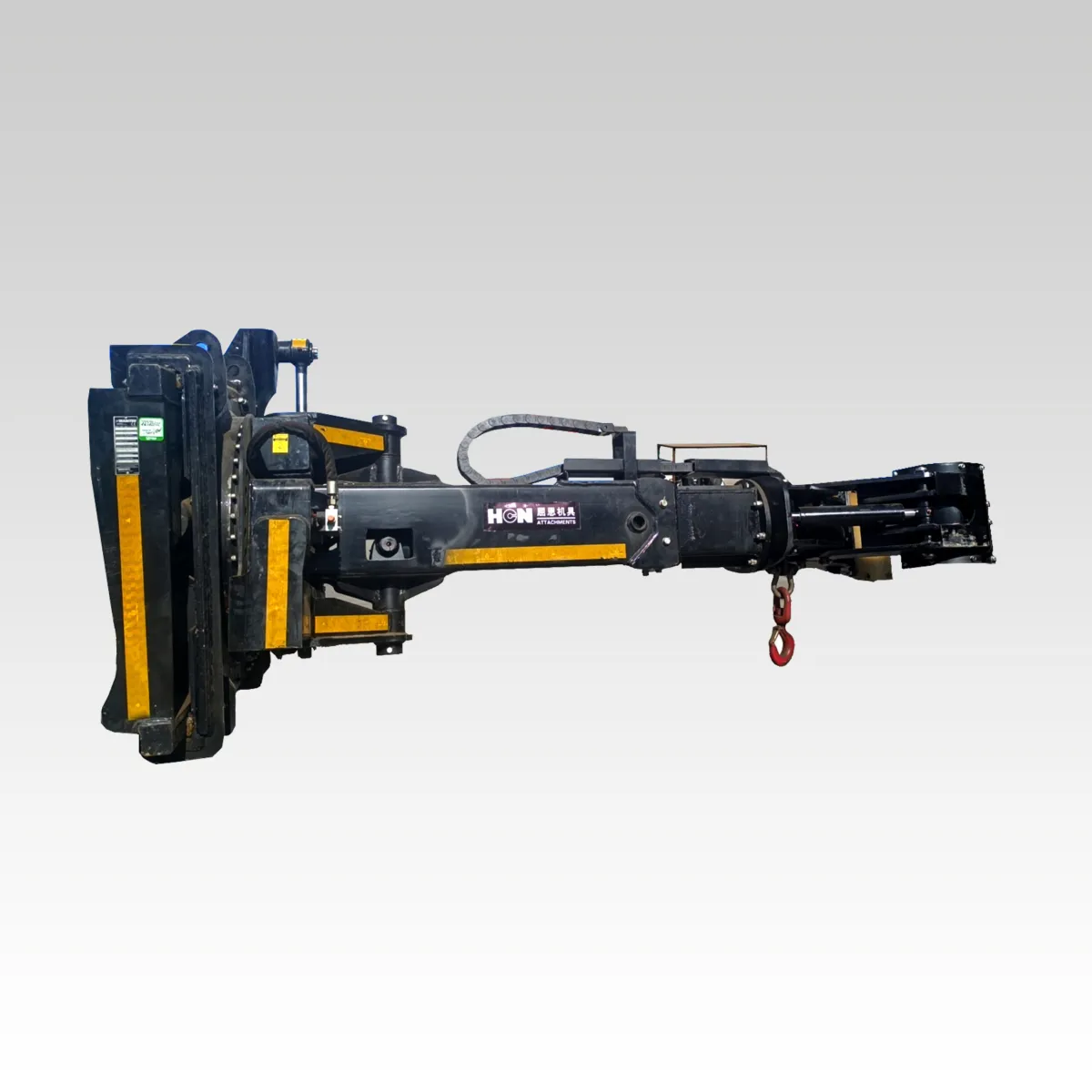

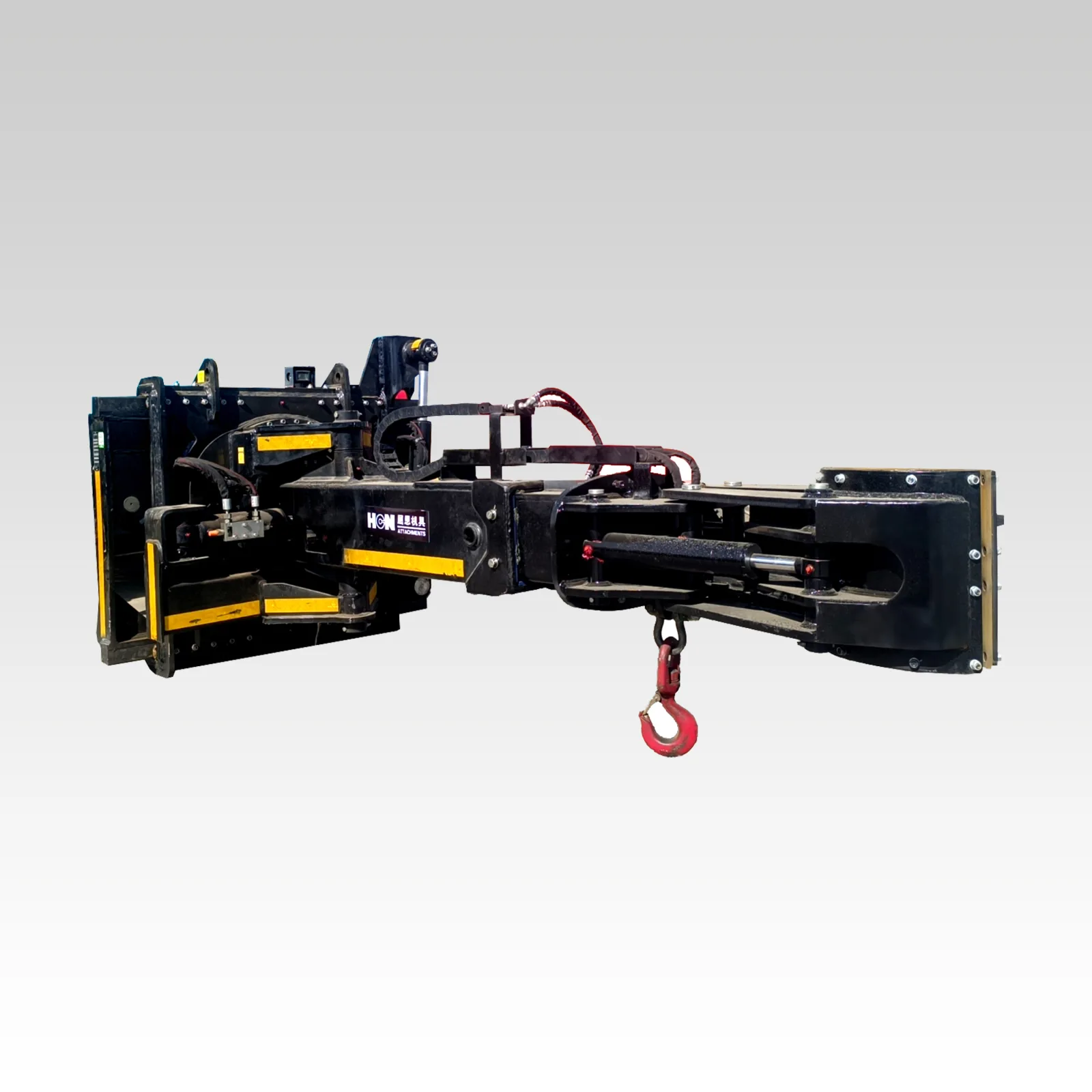

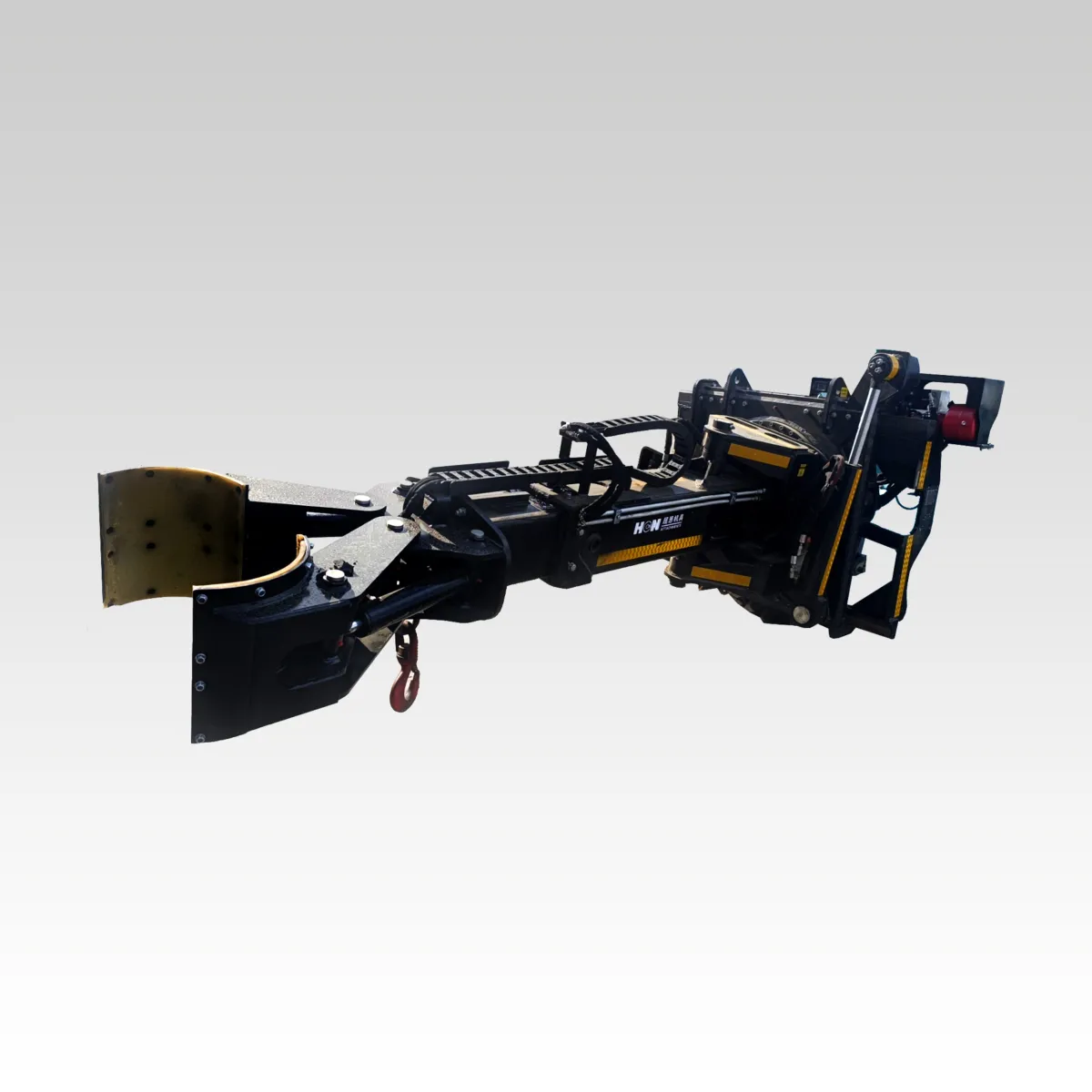

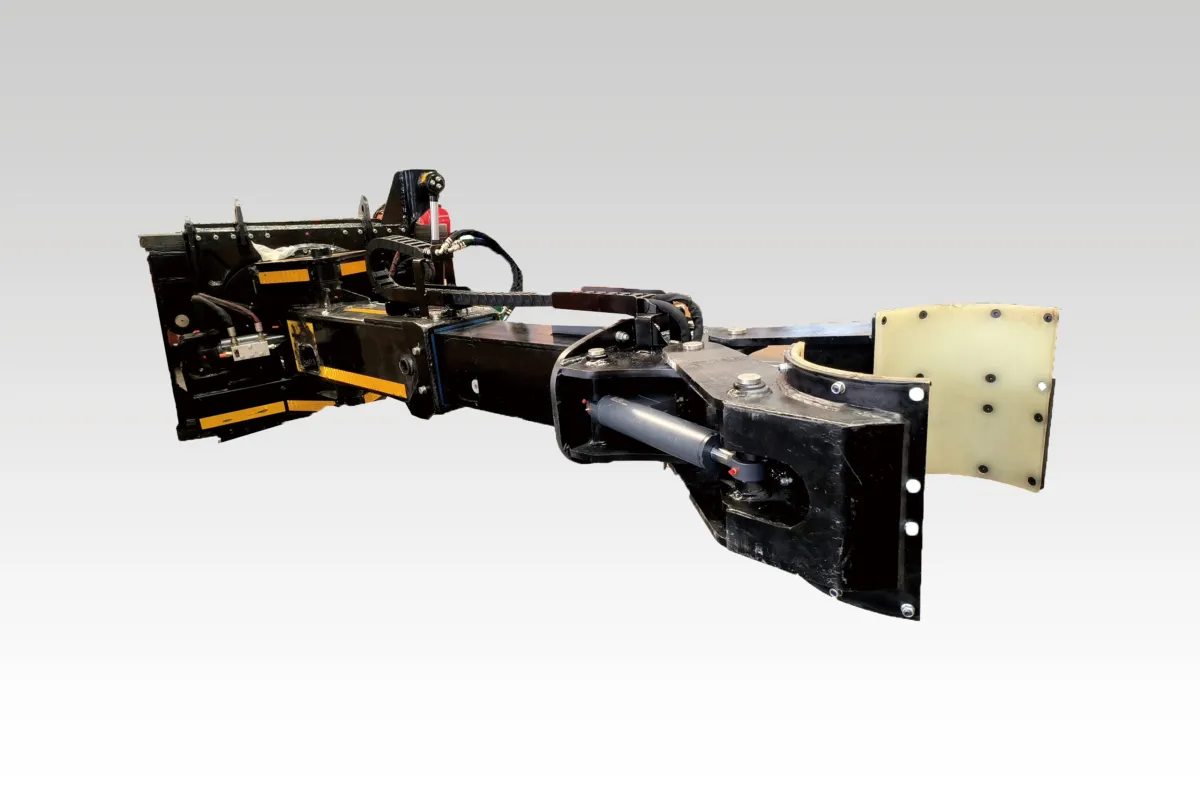

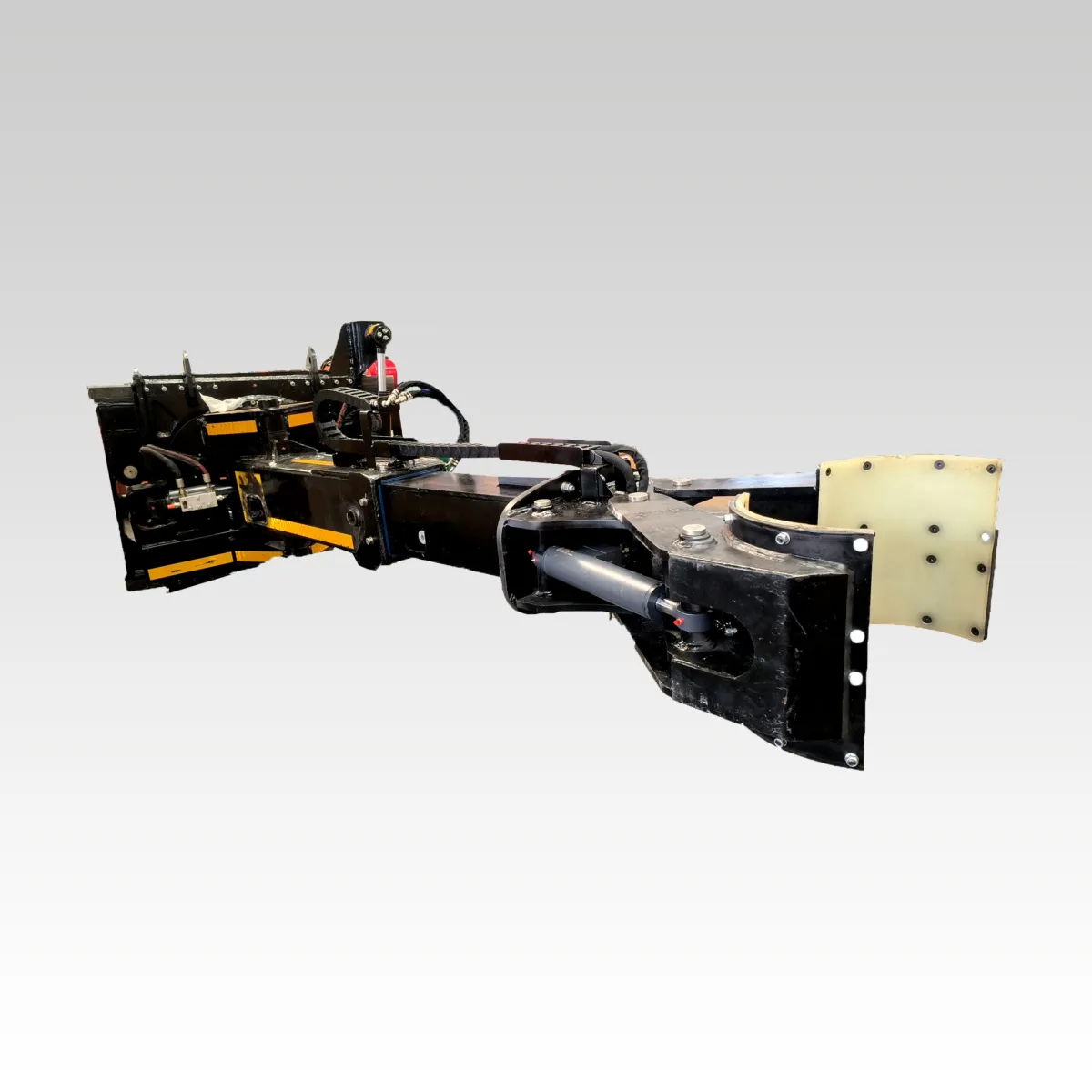

HCN BM59 Hydraulic Cylinder Gripper: CE-certified port equipment attachment for wheel loaders. Ideal for port terminals, bulk cargo, and mining yards. Key…
Factory-direct pricing · Responds within 24 hours
Submit RFQ FormThe BM59 Hydraulic Cylinder Gripper from HCN Attachments Manufacture Co., Ltd is a heavy-duty skid steer / loader attachment engineered for global construction, municipal, and industrial OEM applications.
Typical specifications include Overall Width: 1518 · Overall Length: 3194-3674 (480) · Overall Height: 1345. Mounting interfaces, hydraulic flow, and working width are configurable to your carrier model.
Request technical drawings and an export quote at hcn-atta.com · CE certified · ISO 9001:2015 · worldwide shipping.
| Specification | Value / Range |
|---|---|
| Overall Length Extension range (mm) | 3194-3674 (480) |
| Overall Width (mm) | 1518 |
| Overall Height (mm) | 1345 |
| Weight (Mounting hardware not included)(Kg) | 2080 |
| Round log grip diameter range(mm) | Φ300-Φ410 |
| Body rotation(°) | ±22 |
| Side Shift (mm) | 300 |
| Body offset(°) | ±15 |
| Maximum Allowable Pressure (MPa) | 21 |
| Compatible Carriers | Forklift/Wheel loader |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
The HCN BM59 Hydraulic Cylinder Gripper is a port & mining equipment designed for installation on Wheel Loaders. It is manufactured at HCN Attachments' ISO 9001:2015-certified facility in Xuzhou, China, and supplied to contractors, rental fleets, OEM partners, and equipment distributors in more than 60 countries. When sourcing engineering attachment, hydraulic attachment, oem attachment, ce certified attachment for export or fleet replacement, verify carrier weight class, hydraulic output, and mounting interface before order confirmation — HCN provides free compatibility checks on request.
The HCN BM59 Hydraulic Cylinder Gripper is a precision-engineered attachment manufactured for Wheel Loaders. CE certified and ISO 9001:2015 quality-assured, it is built at our 80,000 m² Xuzhou facility and exported to contractors in more than 60 countries worldwide.
Available model designations: BM5924. Specification values in the table below apply to the listed model range. If your carrier falls outside the published weight class, contact HCN engineering with the machine make, model, operating weight, and pin-to-pin dimensions — custom bracket fabrication is typically available within 15–30 working days.
HCN BM59 Hydraulic Cylinder Gripper units leave factory with CE conformity documentation, operator manual, and QC records. Standard in-stock configurations ship within 7–15 working days; custom specifications require 15–30 working days. Export terms are quoted FOB Qingdao or Shanghai unless otherwise agreed. Submit an RFQ with your machine model, working conditions, and destination country for pricing, lead time, and bracket fit confirmation.
The BM59 Hydraulic Cylinder Gripper is specified on the following project types. Each application below reflects real field use — not generic marketing claims.
On this type of project, the BM59 Hydraulic Cylinder Gripper reduces cycle time compared with manual methods by allowing the operator to work from the carrier cab. Construction site material handling and site preparation
On this type of project, the BM59 Hydraulic Cylinder Gripper reduces cycle time compared with manual methods by allowing the operator to work from the carrier cab. Municipal and infrastructure maintenance operations
On this type of project, the BM59 Hydraulic Cylinder Gripper reduces cycle time compared with manual methods by allowing the operator to work from the carrier cab. Agricultural, landscaping, and rural property management
On this type of project, the BM59 Hydraulic Cylinder Gripper reduces cycle time compared with manual methods by allowing the operator to work from the carrier cab. Industrial and warehouse material handling operations
Engineering and procurement teams typically evaluate the BM59 Hydraulic Cylinder Gripper against these design and manufacturing attributes:
Factory-published values for the BM59 Hydraulic Cylinder Gripper. Confirm final configuration against your carrier data sheet before purchase order release.
| Specification | Value / Range |
|---|---|
| Overall Length Extension range (mm) | 3194-3674 (480) |
| Overall Width (mm) | 1518 |
| Overall Height (mm) | 1345 |
| Weight (Mounting hardware not included)(Kg) | 2080 |
| Round log grip diameter range(mm) | Φ300-Φ410 |
| Body rotation(°) | ±22 |
| Side Shift (mm) | 300 |
| Body offset(°) | ±15 |
| Maximum Allowable Pressure (MPa) | 21 |
| Compatible Carriers | Forklift/Wheel loader |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
The HCN BM59 Hydraulic Cylinder Gripper is engineered for Wheel Loaders within HCN's rated weight and hydraulic output range. Send your exact carrier make, model, and pin-to-pin dimensions for a free compatibility confirmation before order placement. OEM-fit brackets are available for Caterpillar, Komatsu, Hitachi, Volvo, Doosan, Bobcat, and 30+ brands.
HCN attachments are engineered to OEM dimensional specifications for Caterpillar, Komatsu, Hitachi, Volvo, Doosan, Hyundai, CASE, John Deere, Bobcat, and 30+ other brands. Please contact us with your carrier make, model, and pin-to-pin dimensions for a compatibility confirmation before ordering.
Standard in-stock models ship within 7–15 working days from our Xuzhou warehouse. Custom-specification orders (alternative pin dimensions, colors, or configurations) require 15–30 working days. We ship worldwide via sea freight (FOB Qingdao or Shanghai) and air freight for urgent requirements.
Yes. HCN has operated formal OEM programs for more than 10 years, supplying attachments under customer brand names with custom color, labeling, and documentation. MOQ and lead time requirements apply. Contact our OEM department with your volume and specification requirements to receive a non-disclosure agreement and initial quotation.
All HCN attachments include a 12-month or 1,000-hour manufacturer warranty. Genuine replacement seal kits, wear parts, and maintenance documentation are stocked at our Xuzhou facility for immediate international dispatch. Technical support is available by email (nancy@hcn-tech.com) or WhatsApp (+86 185 5285 3111) in English and Chinese.
21,000 m² manufacturing campus in Xuzhou ETDZ — CNC laser cutting, robotic welding, in-house heat treatment, and PLM-controlled production. 400+ models, 500+ patents, export to 60+ countries.
Tour our factory →ISO 9001:2015, ISO 14001, ISO 45001, CE conformity on export lines, and National High-Tech Enterprise status. Full documentation available for tender and OEM audit submissions.
View certifications →Documented deployments: highway compaction in Southeast Asia, airport snow management in Northern Europe, and open-pit rock breaking in Australia — with measurable results.
Read case studies →Not sure which attachment fits your machine? Read our selection guide · Procurement FAQ
Include your machine model, working conditions, and destination country — our sales engineers respond within 24 business hours with pricing, lead time, and bracket fit confirmation.
