Street and parking-lot sweeping
Street and parking-lot sweeping after construction or winter sanding operations

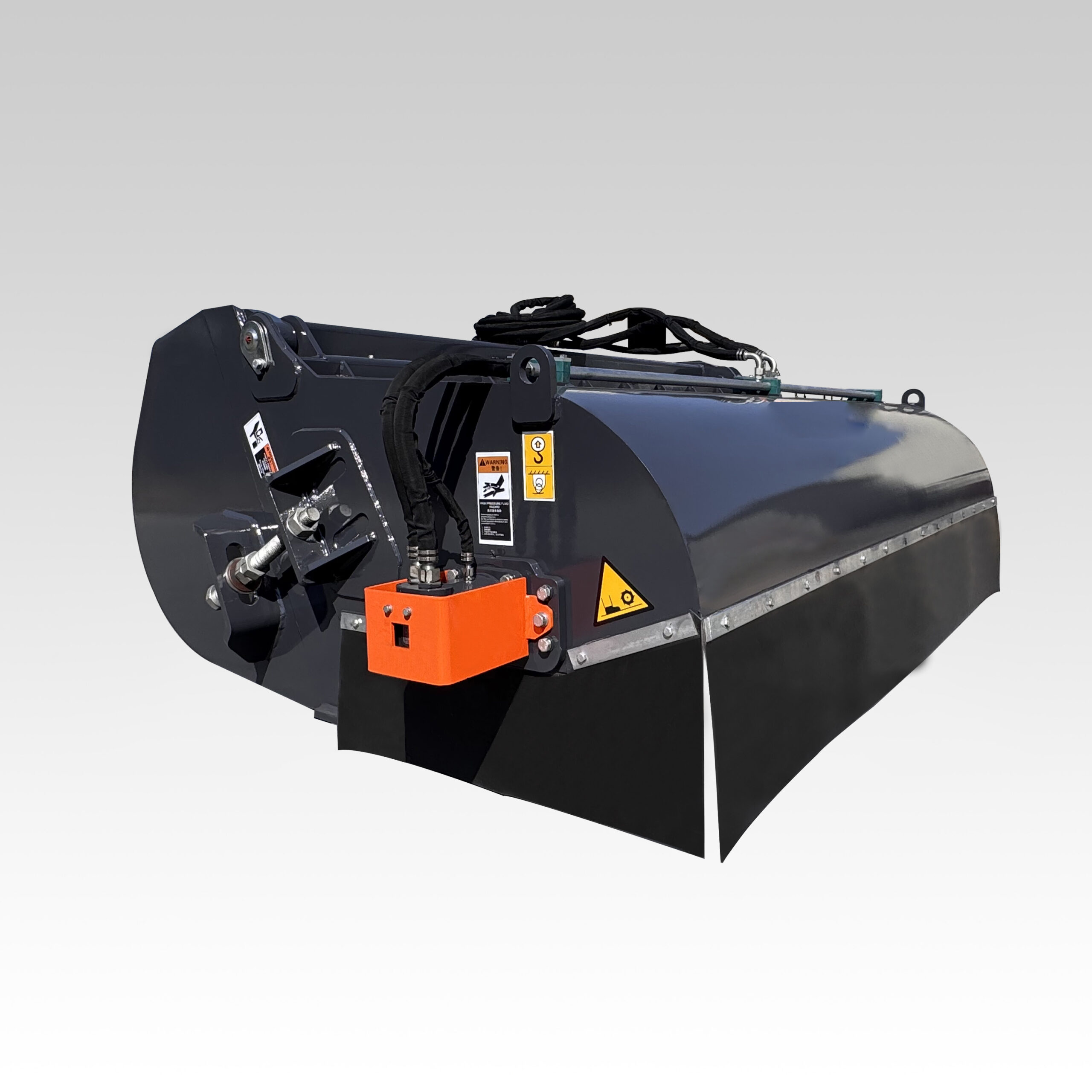

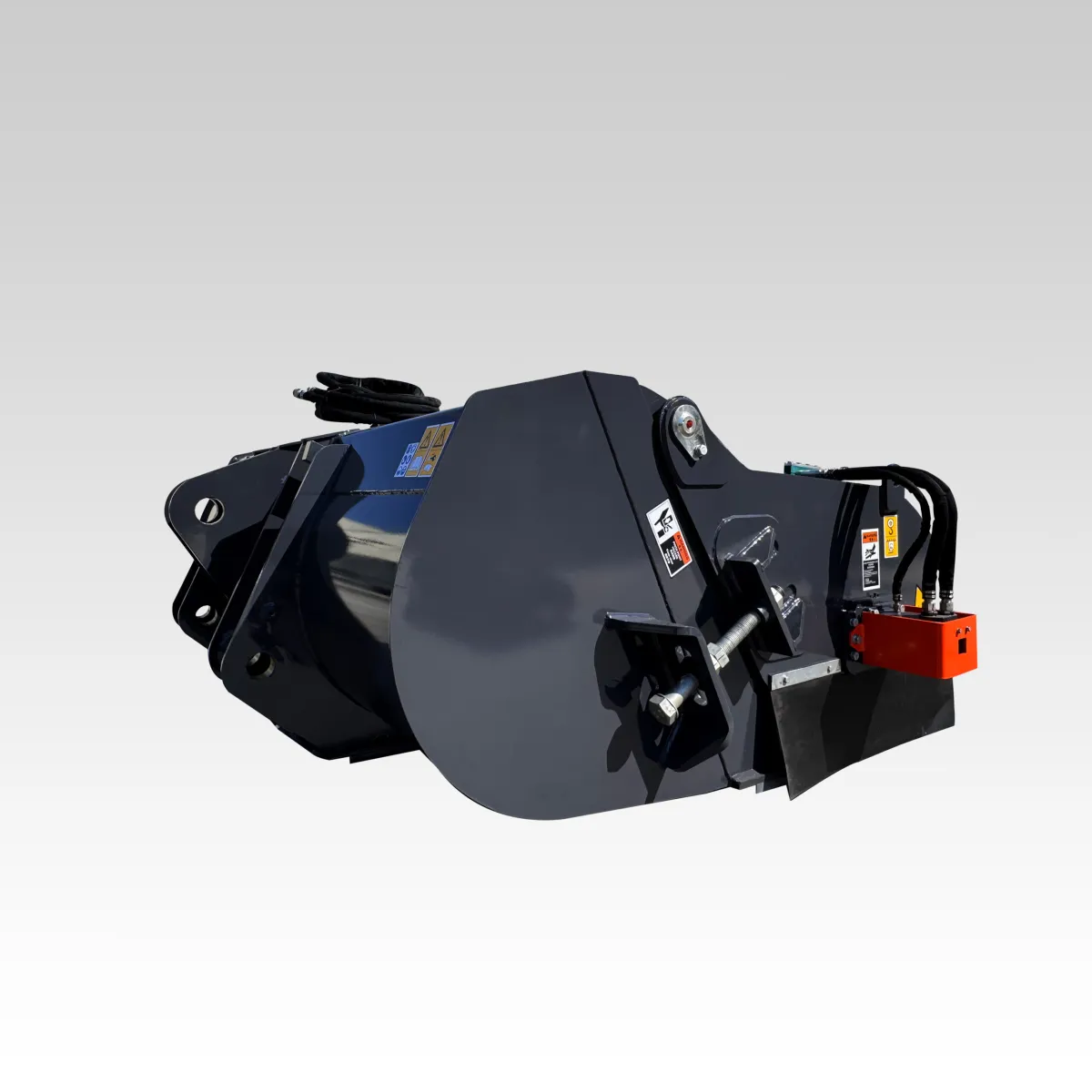

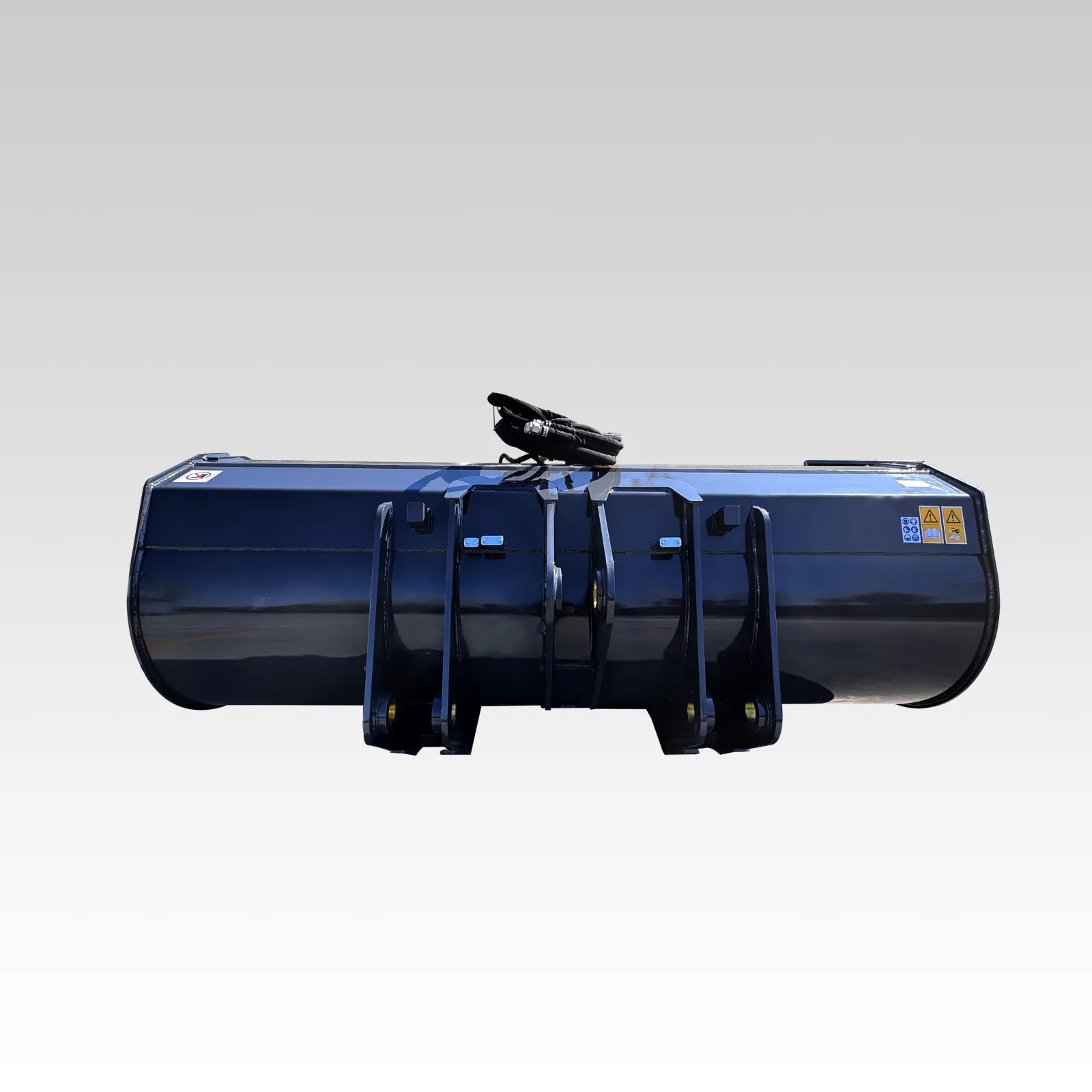

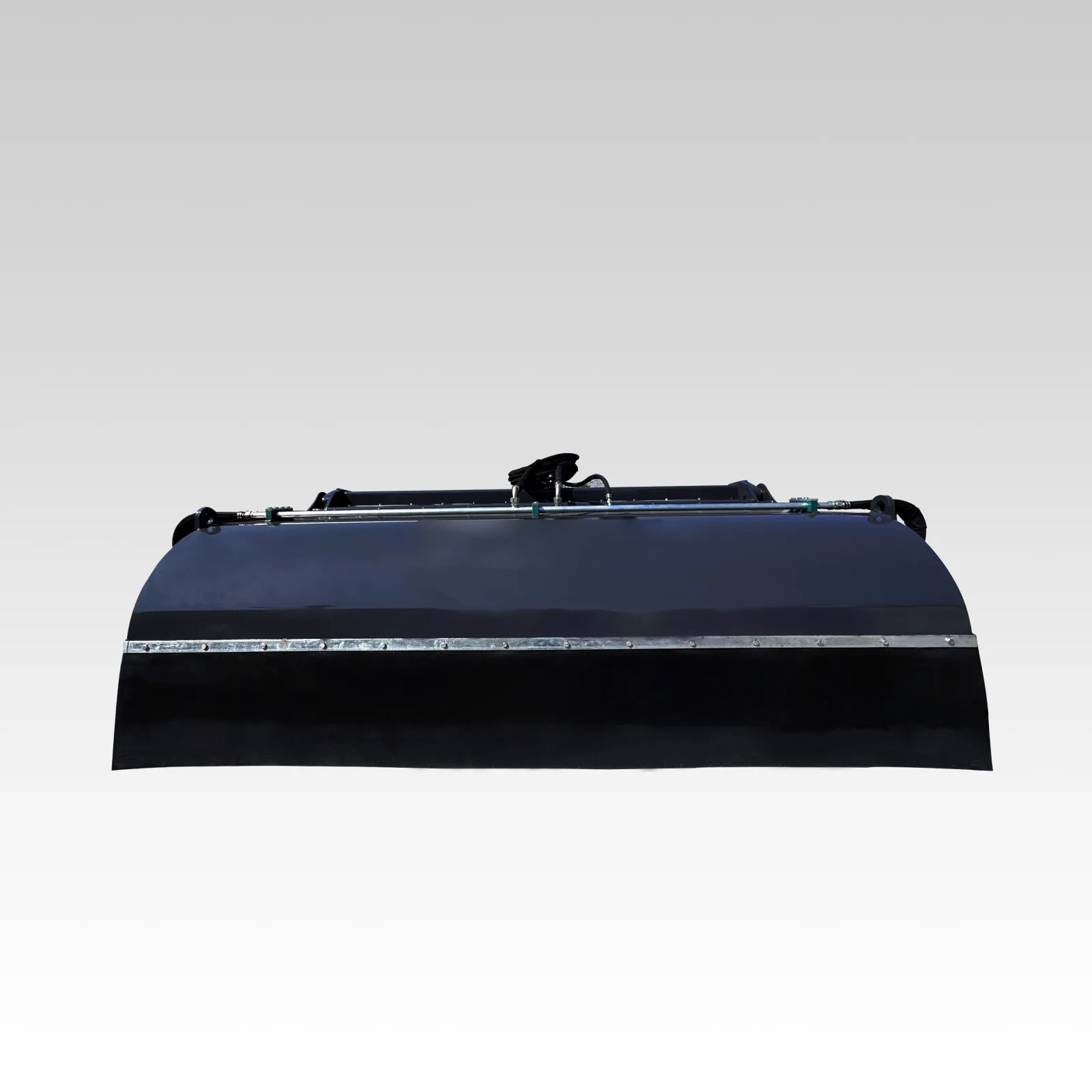

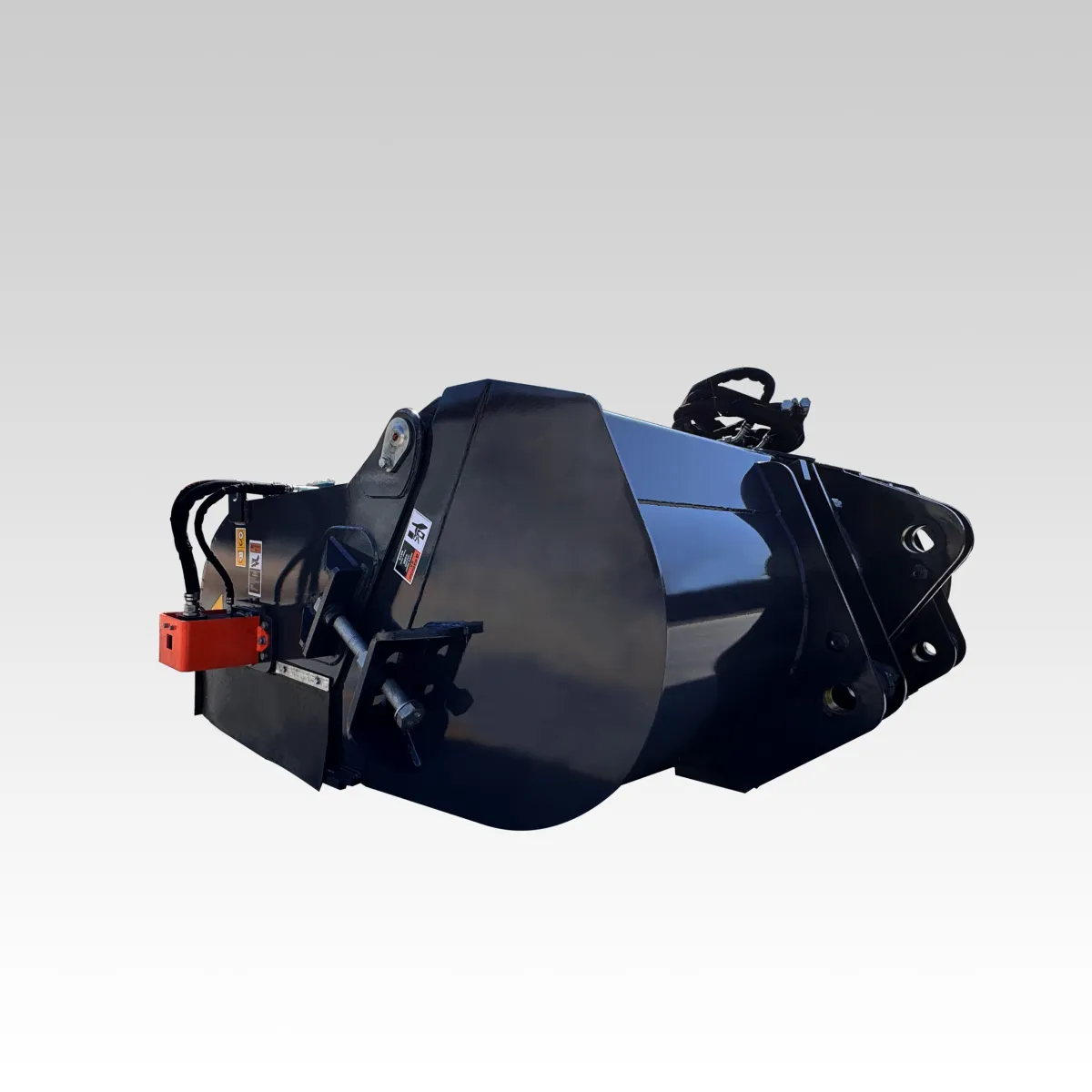

BM13 Reverse Sweeper
CE-certified sweeper broom attachment for Wheel Loaders — confirm carrier fit, hydraulic requirements, and configuration with HCN engineering.
Models: BM13100 · BM13110
Compatible Carriers: Wheel Loaders
Category:
Municipal & Road Maintenance
HCN BM13 Reverse Sweeper — CE-certified sweeper broom attachment for export. Request specs, lead time and FOB quote.
CE Certified
ISO 9001:2015
HCN Manufactured
60+ Countries
Get a Free Quote
Factory-direct pricing · Responds within 24 hours
Submit RFQ Form
CE Certified
ISO 9001:2015
60+ Countries
Product Video
The BM13 Reverse Sweeper from HCN Attachments Manufacture Co., Ltd is a heavy-duty skid steer / loader attachment engineered for global construction, municipal, and industrial OEM applications.
Typical specifications include Overall Width: 3012 / 3465 · Overall Length: 1950 / 2297 · Overall Height: 950 / 1140. Mounting interfaces, hydraulic flow, and working width are configurable to your carrier model.
Request technical drawings and an export quote at hcn-atta.com · CE certified · ISO 9001:2015 · worldwide shipping.
Technical Specifications
| Specification | BM13100 | BM13110 |
|---|---|---|
| Overall Length (mm) | 1950 | 2297 |
| Overall Width (mm) | 3012 | 3465 |
| Overall Height (mm) | 950 | 1140 |
| Total Weight (incl. Mount) (kg) | 1464 | 2076 |
| Hopper Capacity (m³) | 2.6 | 2.9 |
| Effective Sweeping Width (mm) | 2540 | 2800 |
| Brush Roller Diameter (mm) | Φ800 | Φ800 |
| Maximum Allowable Pressure (Mpa) | 21 | 21 |
| Hydraulic Flow (L/min) | 180-200 | 200-240 |
| Working speed(km/h) | 5~6.5 | 5~6.5 |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
What Is the BM13 Reverse Sweeper?
The HCN BM13 Reverse Sweeper is a sweeper broom attachment for Wheel Loaders. Confirm the carrier model, mounting interface, hydraulic flow and operating pressure before ordering; HCN engineering provides a fitment check against the submitted machine data.
HCN municipal sweeper and broom attachments — angle brooms, forward sweepers, and vacuum sweepers — equip skid steers, wheel loaders, and municipal trucks for road, plaza, warehouse, and site cleaning. CE-certified brushes and OEM-fit mounts support daily municipal and contractor cleaning programs.
Models covered on this page: BM13100, BM13110. Use the specification table above to compare published values, then request confirmation for the final configuration.
BM13 Reverse Sweeper Applications & Use Cases
Typical applications for this attachment type include:
Job-site cleanup
Job-site cleanup before asphalt paving or concrete pour — remove debris and loose aggregate
Warehouse, plaza, and industrial yard sweeping
Warehouse, plaza, and industrial yard sweeping for facility maintenance contracts
Airport apron and taxiway FOD
Airport apron and taxiway FOD (Foreign Object Debris) sweeping programs
Municipal curb
Municipal curb-line and sidewalk edge cleaning with angle broom side-shift
BM13 Reverse Sweeper Carrier Compatibility
- Compatible carriers
- Wheel Loaders
- OEM brands supported
- Fitment is confirmed from the carrier make, model, mounting dimensions, operating weight and auxiliary hydraulic data supplied with the RFQ.
- Published carrier group: Wheel Loaders.
- Send carrier make, model, operating weight, coupler type and mounting dimensions for confirmation before PO release.
- Model range covered on this page: BM13100, BM13110.
Sweeper Broom vs. Manual Sweeping / Walk-Behind Sweeper
Walk-behind and hand sweeping suit small zones. Loader-mounted sweeper brooms are specified for routes, yards, and construction cleanup with daily area targets.
| Selection Criteria | Sweeper Attachment | Manual / Walk-Behind |
|---|---|---|
| Coverage rate | Cab-operated; large area per hour | Limited by operator fatigue and walk speed |
| Best application | Streets, yards, aprons, job-site cleanup | Small lots, indoor aisles, spot cleaning |
| Debris handling | Angle broom or vacuum hopper options | Bagging or small hopper only |
| Procurement note | Match width and flow to carrier | Lower cost for under 1,000 m²/day |
How to Read Sweeper Broom Attachment Specifications
Use these parameters together with the published specification table and your carrier data:
- Sweeping Width (mm)
- Working width of the brush or broom. Wider units cover more area per pass but need higher carrier hydraulic flow and adequate machine stability on slopes.
- Brush / Broom Diameter
- Larger diameter maintains contact pressure as bristles wear. Specify replacement brush kits for the same core diameter to keep cleaning performance consistent.
- Hydraulic Flow (L/min)
- Must match carrier auxiliary circuit. Undersized flow reduces brush speed and leaves striping; oversized flow may require a flow-control valve.
- Brush Angle / Side-Shift
- Angle brooms and side-shift let operators sweep flush to curbs and walls without repositioning the carrier for every pass.
- Collector / Vacuum Option
- Forward vacuum and NP models add a hopper for fines and dust. Specify hopper capacity and dump height for your disposal workflow.
BM13 Reverse Sweeper — Frequently Asked Questions
The BM13 Reverse Sweeper is listed for Wheel Loaders. Final fitment must be checked against the carrier make, model, operating weight, coupler type, mounting dimensions, auxiliary hydraulic flow and pressure before production.
This page covers model designations BM13100, BM13110. Compare the model columns in the specification table and request confirmation for the exact configuration included in your quotation.
The published values are Maximum Allowable Pressure (Mpa): 21 / 21; Hydraulic Flow (L/min): 180-200 / 200-240. Confirm that the carrier circuit stays within these model-specific limits; ask HCN to verify any value that varies by model.
Key published working values include Hopper Capacity (m³): 2.6 / 2.9; Effective Sweeping Width (mm): 2540 / 2800; Brush Roller Diameter (mm): Φ800 / Φ800. Use the full table for model-by-model values and confirm the required operating condition in the RFQ.
Published transport and installation data include Overall Length (mm): 1950 / 2297; Overall Width (mm): 3012 / 3465; Overall Height (mm): 950 / 1140; Total Weight (incl. Mount) (kg): 1464 / 2076. Check the selected model against carrier capacity, transport limits and site access.
Factory Strength
21,000 m² manufacturing campus in Xuzhou ETDZ — CNC laser cutting, robotic welding, in-house heat treatment, and PLM-controlled production. 400+ models, 500+ patents, export to 60+ countries.
Tour our factory →Certifications
ISO 9001:2015, ISO 14001, ISO 45001, CE conformity on export lines, and National High-Tech Enterprise status. Full documentation available for tender and OEM audit submissions.
View certifications →Fitment Review
Before production, HCN checks the submitted carrier model, mounting dimensions, operating weight, hydraulic flow and pressure against the requested configuration.
Submit machine details →Need help confirming fitment? Procurement FAQ
Factory-Direct Inquiry
Get a Quote for BM13 Reverse Sweeper
Include your machine model, working conditions, and destination country — our sales engineers respond within 24 business hours with pricing, lead time, and bracket fit confirmation.
