Tour our factory →0512 Tree Shear
CE-certified tree care attachment for Skid Steer Loaders — confirm carrier fit, hydraulic requirements, and configuration with HCN engineering.
Models: 051212 · 051216
Compatible Carriers: Skid Steer Loaders
Category:
Forestry & Landscaping
HCN 0512 Tree Shear — CE-certified tree care attachment for Skid Steer Loaders. OEM-fit brackets, ISO 9001 quality. Request specs, lead time and FOB quote.
CE Certified
ISO 9001:2015
HCN Manufactured
60+ Countries
Get a Free Quote
Factory-direct pricing · Responds within 24 hours
Submit RFQ Form
CE Certified
ISO 9001:2015
60+ Countries
Product Video

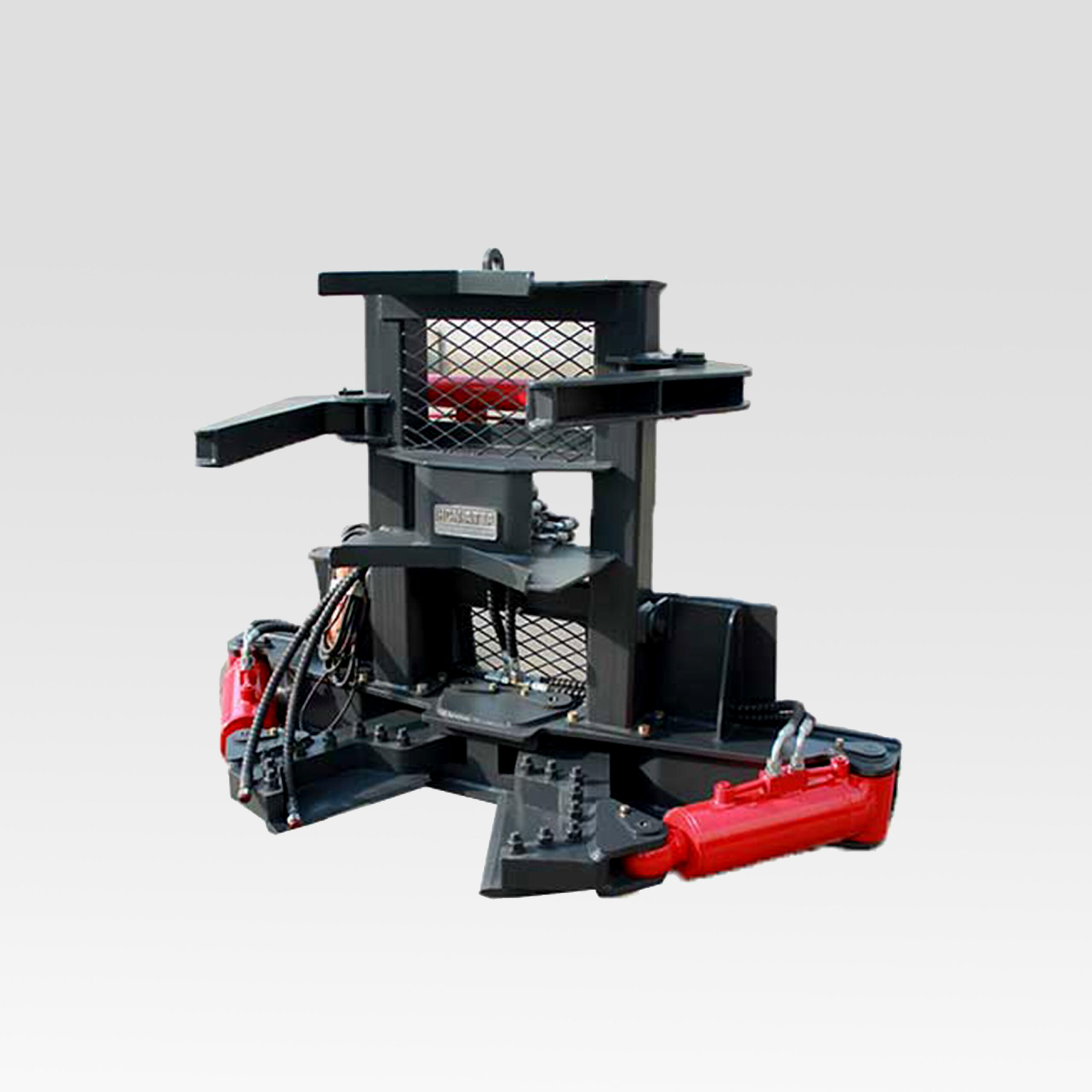

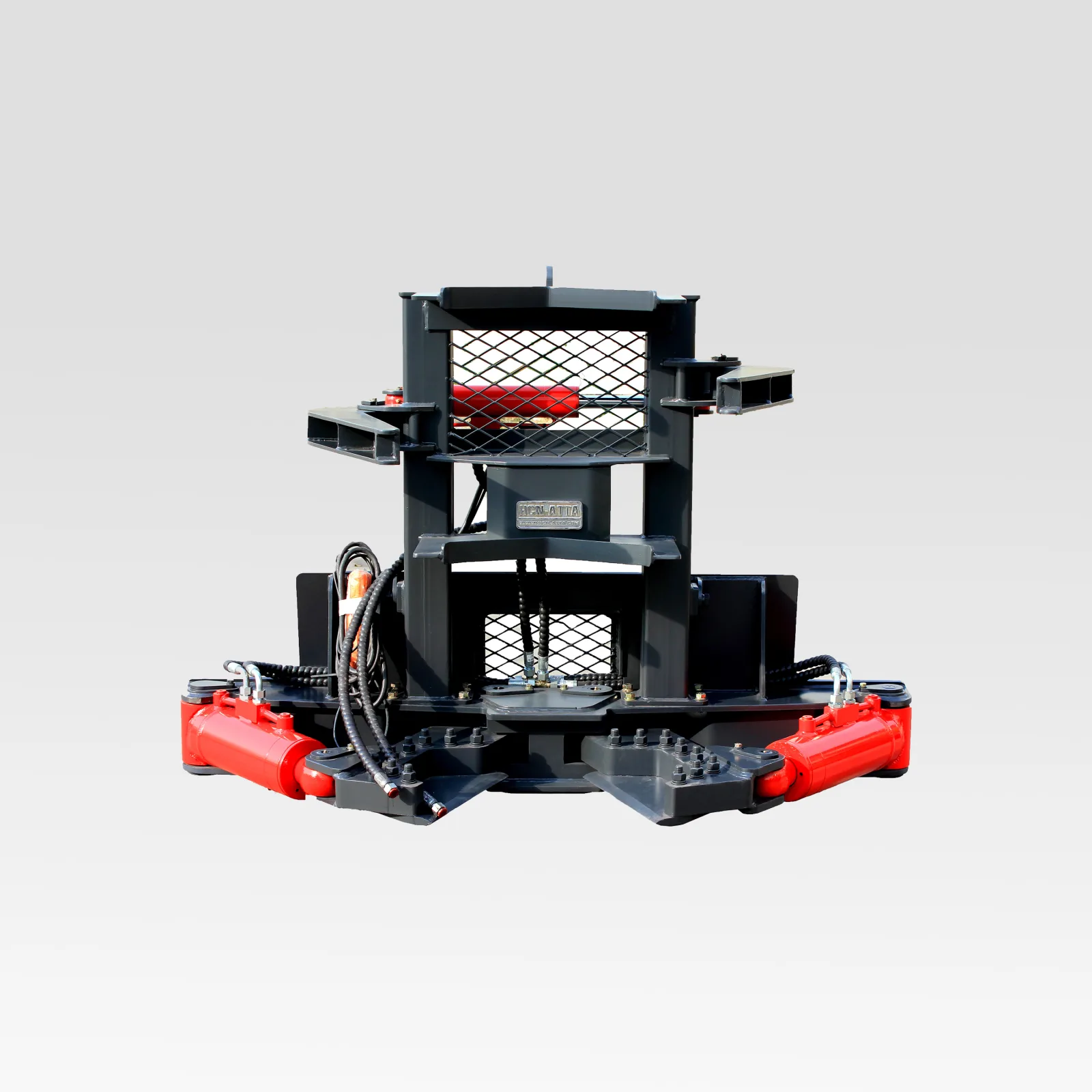

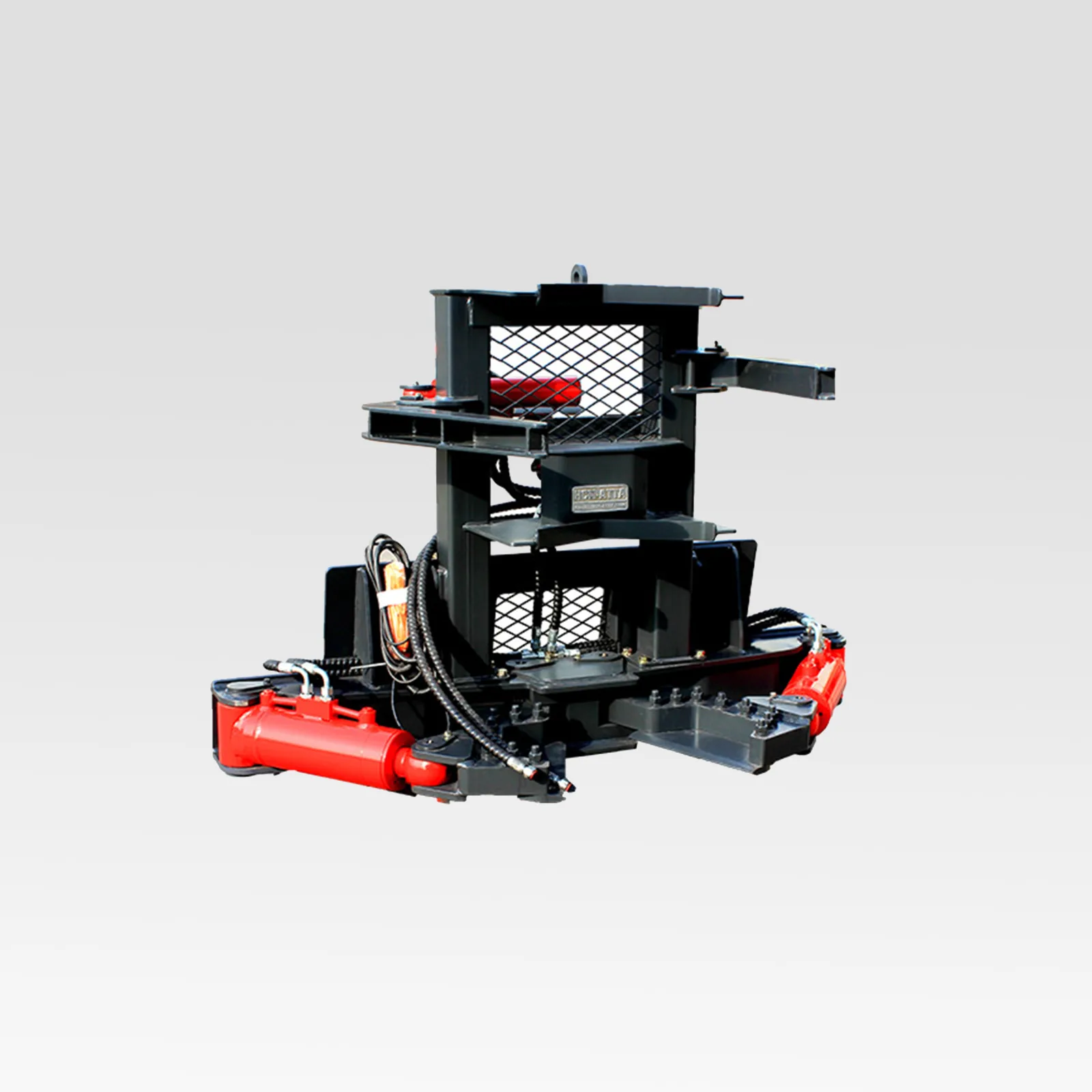

The 0512 Tree Shear from HCN Attachments Manufacture Co., Ltd is a heavy-duty skid steer / loader attachment engineered for global construction, municipal, and industrial OEM applications.
Typical specifications include Overall Width: 1900 / 2300 · Overall Length: 860 / 895 · Overall Height: 1305 / 1525. Mounting interfaces, hydraulic flow, and working width are configurable to your carrier model.
Request technical drawings and an export quote at hcn-atta.com · CE certified · ISO 9001:2015 · worldwide shipping.
Technical Specifications
| Specification | 051212 | 051216 |
|---|---|---|
| Overall Width (mm) | 1900 | 2300 |
| Overall Height (mm) | 1305 | 1525 |
| Overall Length (mm) | 860 | 895 |
| Tree shear diameter(mm) | ≤Φ300 | ≤Φ400 |
| Weight (Theoretical) (kg) | 765 | 870 |
| Maximum Allowable Pressure (MPa) | 21 | 21 |
| Hydraulic Flow (L/min) | 50-75 | 50-75 |
| Operating Voltage (V)(Optional) | DC12/DC24 | DC12/DC24 |
| Compatible Carrier | Skid steer / compact loader | Skid steer / compact loader |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
What Is the 0512 Tree Shear?
The HCN 0512 Tree Shear is a tree care attachment for Skid Steer Loaders. Confirm the carrier model, mounting interface, hydraulic flow and operating pressure before ordering; HCN engineering provides a fitment check against the submitted machine data.
Models covered on this page: 051212, 051216. Use the specification table above to compare published values, then request confirmation for the final configuration.
0512 Tree Shear Carrier Compatibility
- Compatible carriers
- Skid Steer Loaders
- OEM brands supported
- Fitment is confirmed from the carrier make, model, mounting dimensions, operating weight and auxiliary hydraulic data supplied with the RFQ.
- Published carrier group: Skid Steer Loaders.
- Send carrier make, model, operating weight, coupler type and mounting dimensions for confirmation before PO release.
- Model range covered on this page: 051212, 051216.
0512 Tree Shear — Frequently Asked Questions
The 0512 Tree Shear is listed for Skid Steer Loaders. Final fitment must be checked against the carrier make, model, operating weight, coupler type, mounting dimensions, auxiliary hydraulic flow and pressure before production.
This page covers model designations 051212, 051216. Compare the model columns in the specification table and request confirmation for the exact configuration included in your quotation.
The published values are Maximum Allowable Pressure (MPa): 21 / 21; Hydraulic Flow (L/min): 50-75 / 50-75; Operating Voltage (V)(Optional): DC12/DC24 / DC12/DC24. Confirm that the carrier circuit stays within these model-specific limits; ask HCN to verify any value that varies by model.
Key published working values include Tree shear diameter(mm): ≤Φ300 / ≤Φ400. Use the full table for model-by-model values and confirm the required operating condition in the RFQ.
Published transport and installation data include Overall Width (mm): 1900 / 2300; Overall Height (mm): 1305 / 1525; Overall Length (mm): 860 / 895; Weight (Theoretical) (kg): 765 / 870. Check the selected model against carrier capacity, transport limits and site access.
Certifications
ISO 9001:2015, ISO 14001, ISO 45001, CE conformity on export lines, and National High-Tech Enterprise status. Full documentation available for tender and OEM audit submissions.
View certifications →Fitment Review
Before production, HCN checks the submitted carrier model, mounting dimensions, operating weight, hydraulic flow and pressure against the requested configuration.
