Factory Strength
21,000 m² manufacturing campus in Xuzhou ETDZ — CNC laser cutting, robotic welding, in-house heat treatment, and PLM-controlled production. 400+ models, 500+ patents, export to 60+ countries.
Tour our factory →0309 Dozer Blade
CE-certified dozer or grader blade for Skid Steer Loaders — confirm carrier fit, hydraulic requirements, and configuration with HCN engineering.
Models: 030960 · 030972 · 030984 · 030996
Compatible Carriers: Skid Steer Loaders
Category:
Construction Attachments
HCN 0309 Dozer Blade — CE-certified loader blade attachment for export. Request specs, lead time and FOB quote.
CE Certified
ISO 9001:2015
HCN Manufactured
60+ Countries
Get a Free Quote
Factory-direct pricing · Responds within 24 hours
Submit RFQ Form
CE Certified
ISO 9001:2015
60+ Countries
Product Video

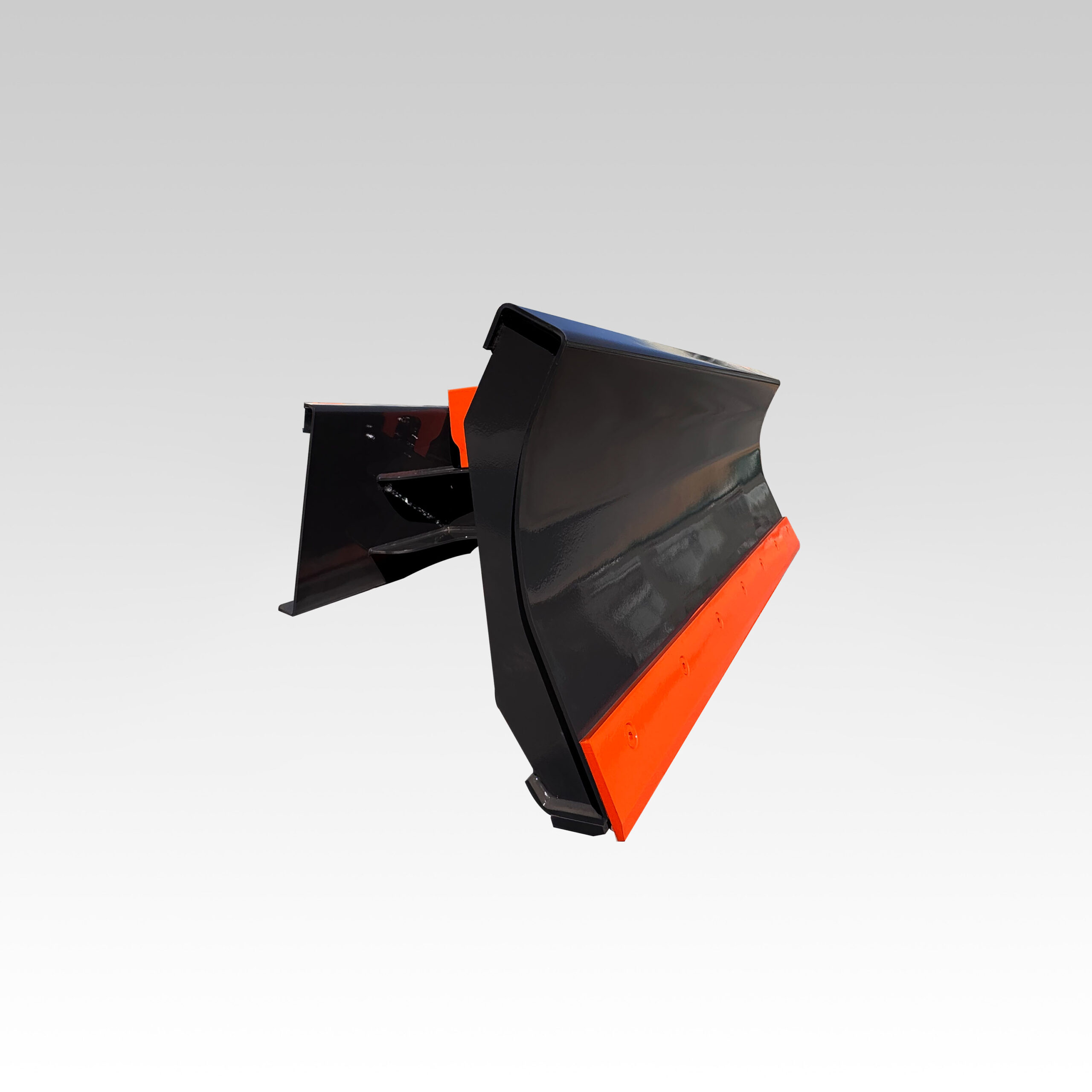

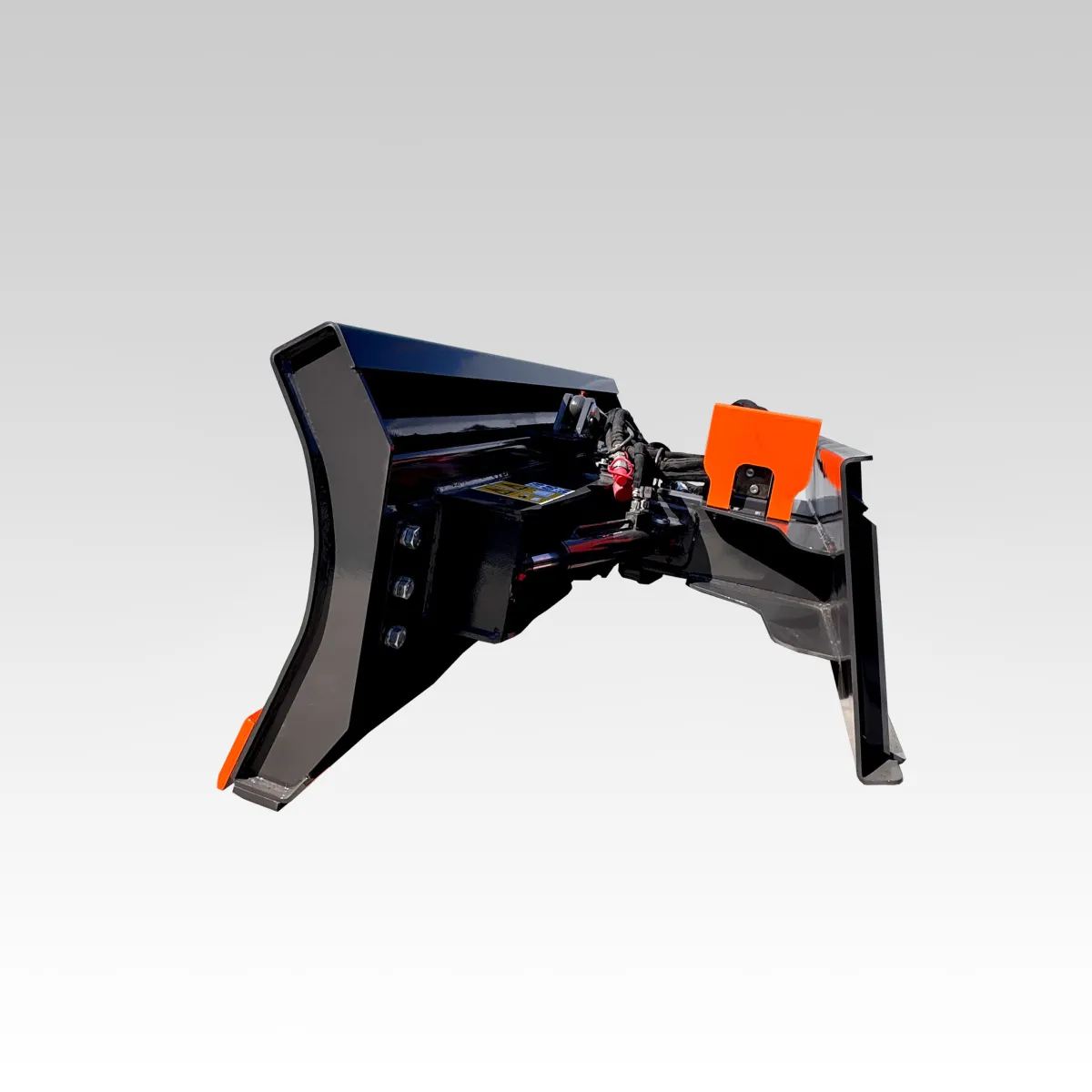

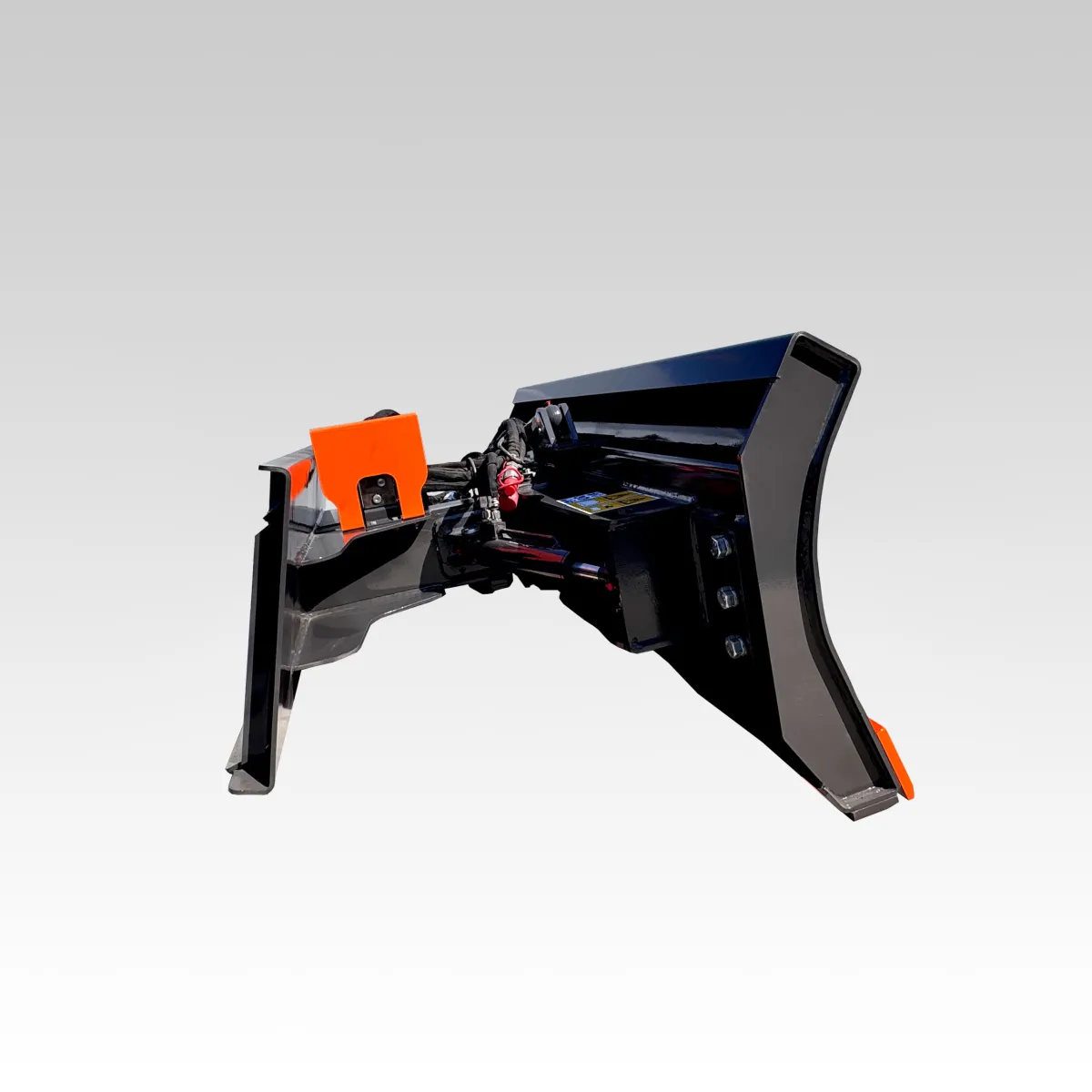

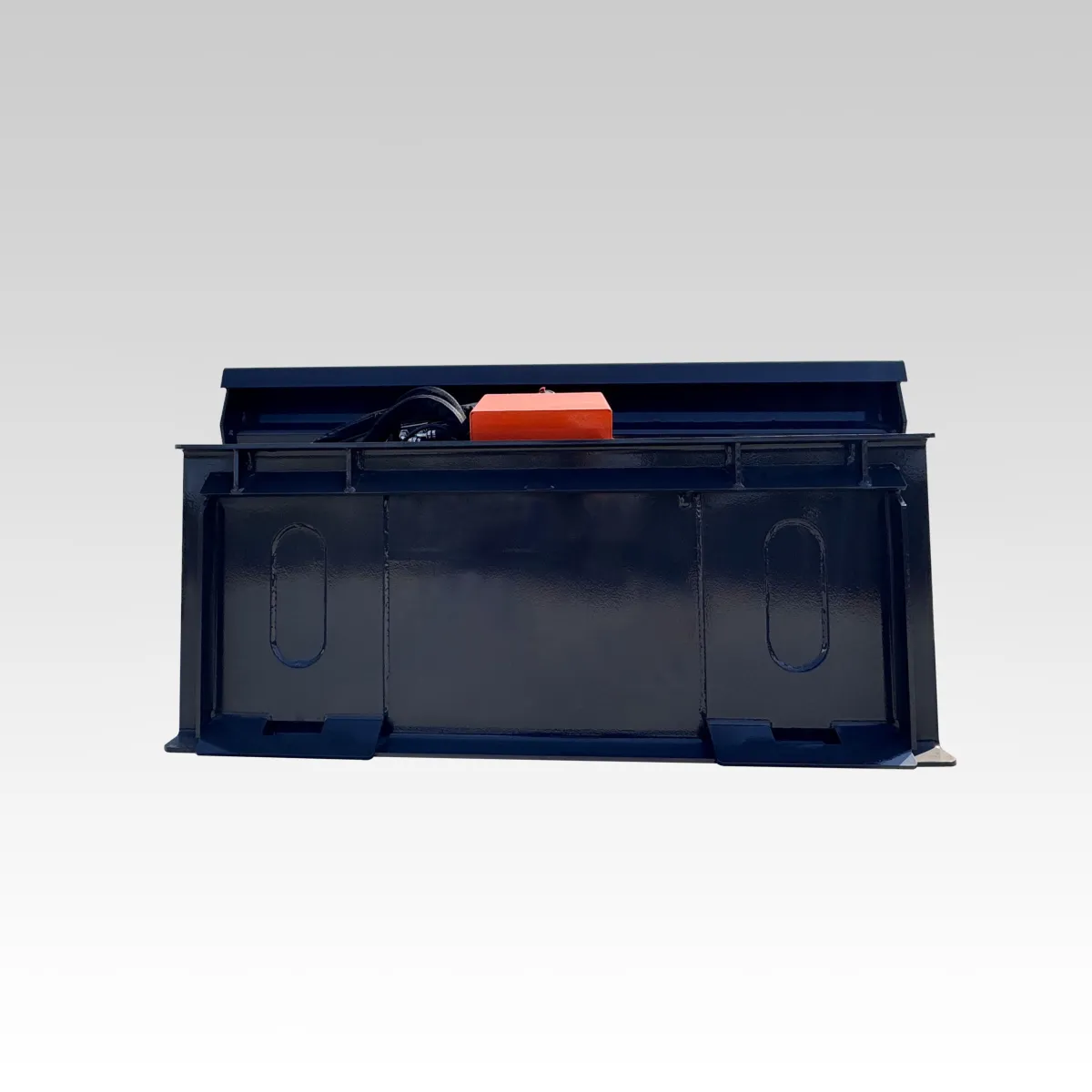

The 0309 Dozer Blade from HCN Attachments Manufacture Co., Ltd is a heavy-duty skid steer / loader attachment engineered for global construction, municipal, and industrial OEM applications.
Typical specifications include Overall Width: 1530 / 1830 · Overall Length: 965 / 965 · Overall Height: 700 / 700. Mounting interfaces, hydraulic flow, and working width are configurable to your carrier model.
Request technical drawings and an export quote at hcn-atta.com · CE certified · ISO 9001:2015 · worldwide shipping.
Technical Specifications
Download Spec PDF PDF · Technical specifications| Specification | 030960 | 030972 | 030984 | 030996 |
|---|---|---|---|---|
| Overall Width (mm) | 1530 | 1830 | 2130 | 2400 |
| Width at 30° Turn (mm) | 1270 | 1519 | 1845 | 2180 |
| Overall Height (mm) | 700 | 700 | 700 | 700 |
| Overall Length (mm) | 965 | 965 | 965 | 965 |
| Maximum deflection angle(°) | ±30 | ±30 | ±30 | ±30 |
| Max Oscillation (°) | ±10 | ±10 | ±10 | ±10 |
| Weight (Theoretical) (Kg) | 525 | 556 | 575 | 625 |
| Hydraulic Flow (L/Min) | 20-30 | 20-30 | 20-30 | 20-30 |
| Operating Voltage (V)(Optional) | DC12/24 | DC12/24 | DC12/24 | DC12/24 |
| Maximum Allowable Pressure (MPa) | 21 | 21 | 21 | 21 |
| Compatible Carriers | Skid steer / compact loader | Skid steer / compact loader | Skid steer / compact loader | Skid steer / compact loader |
Specifications may vary by model. Custom configurations available. Download full spec PDF →
What Is the 0309 Dozer Blade?
The HCN 0309 Dozer Blade is a dozer or grader blade for Skid Steer Loaders. Confirm the carrier model, mounting interface, hydraulic flow and operating pressure before ordering; HCN engineering provides a fitment check against the submitted machine data.
Models covered on this page: 030960, 030972, 030984, 030996. Use the specification table above to compare published values, then request confirmation for the final configuration.
0309 Dozer Blade Carrier Compatibility
- Compatible carriers
- Skid Steer Loaders
- OEM brands supported
- Fitment is confirmed from the carrier make, model, mounting dimensions, operating weight and auxiliary hydraulic data supplied with the RFQ.
- Published carrier group: Skid Steer Loaders.
- Send carrier make, model, operating weight, coupler type and mounting dimensions for confirmation before PO release.
- Model range covered on this page: 030960, 030972, 030984, 030996.
0309 Dozer Blade — Frequently Asked Questions
The 0309 Dozer Blade is listed for Skid Steer Loaders. Final fitment must be checked against the carrier make, model, operating weight, coupler type, mounting dimensions, auxiliary hydraulic flow and pressure before production.
This page covers model designations 030960, 030972, 030984, 030996. Compare the model columns in the specification table and request confirmation for the exact configuration included in your quotation.
The published values are Hydraulic Flow (L/Min): 20-30 / 20-30 / 20-30 / 20-30; Operating Voltage (V)(Optional): DC12/24 / DC12/24 / DC12/24 / DC12/24; Maximum Allowable Pressure (MPa): 21 / 21 / 21 / 21. Confirm that the carrier circuit stays within these model-specific limits; ask HCN to verify any value that varies by model.
Published transport and installation data include Overall Width (mm): 1530 / 1830 / 2130 / 2400; Overall Height (mm): 700 / 700 / 700 / 700; Overall Length (mm): 965 / 965 / 965 / 965; Weight (Theoretical) (Kg): 525 / 556 / 575 / 625. Check the selected model against carrier capacity, transport limits and site access.
Certifications
ISO 9001:2015, ISO 14001, ISO 45001, CE conformity on export lines, and National High-Tech Enterprise status. Full documentation available for tender and OEM audit submissions.
View certifications →Fitment Review
Before production, HCN checks the submitted carrier model, mounting dimensions, operating weight, hydraulic flow and pressure against the requested configuration.
Submit machine details →Need help confirming fitment? Procurement FAQ
Factory-Direct Inquiry
Get a Quote for 0309 Dozer Blade
Include your machine model, working conditions, and destination country — our sales engineers respond within 24 business hours with pricing, lead time, and bracket fit confirmation.
