CE-certified hydraulic breaker for Skid Steer Loaders — OEM-fit brackets, factory-direct pricing, ships to 60+ countries.
Models: 030516 · 030518Ⅰ · 030524Ⅰ

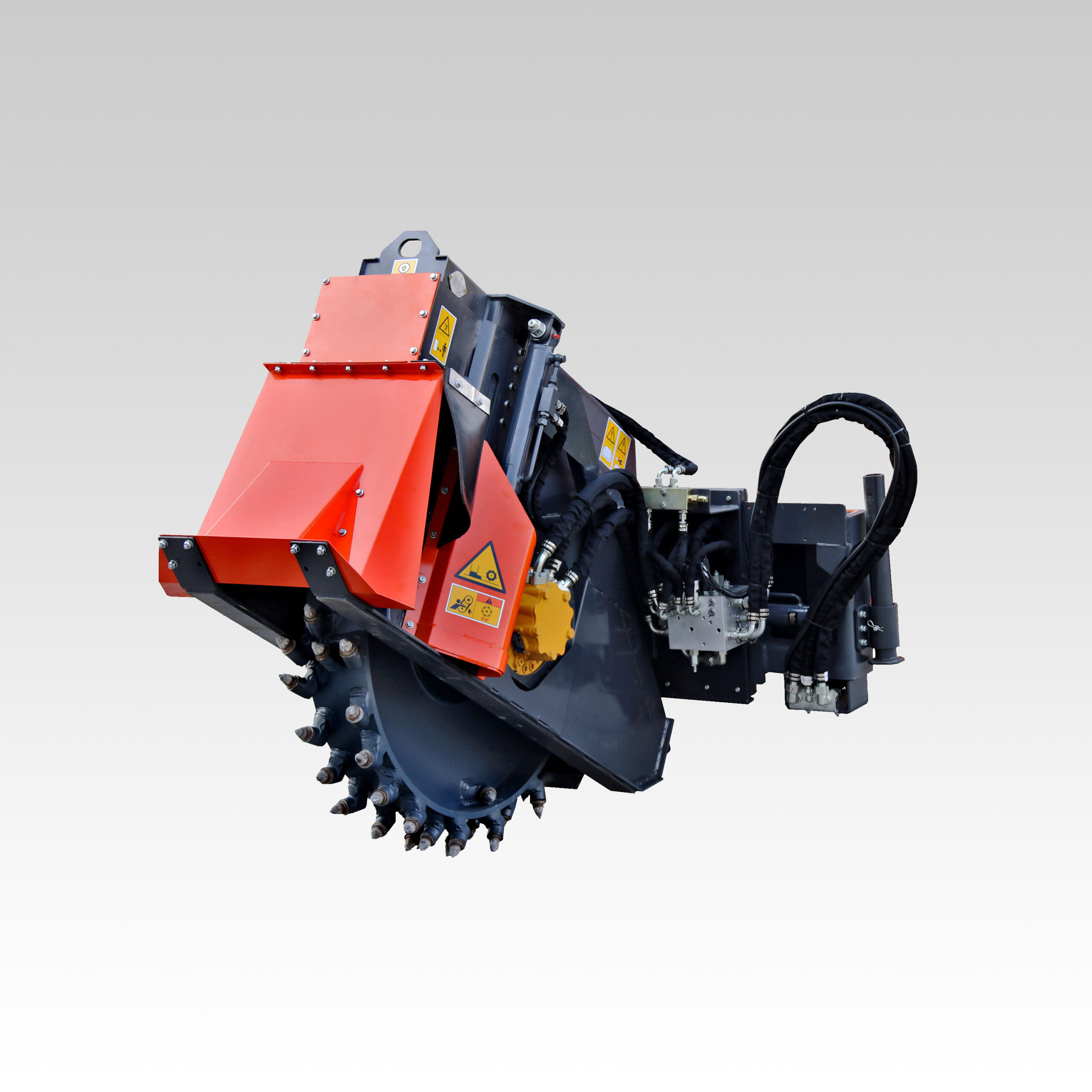

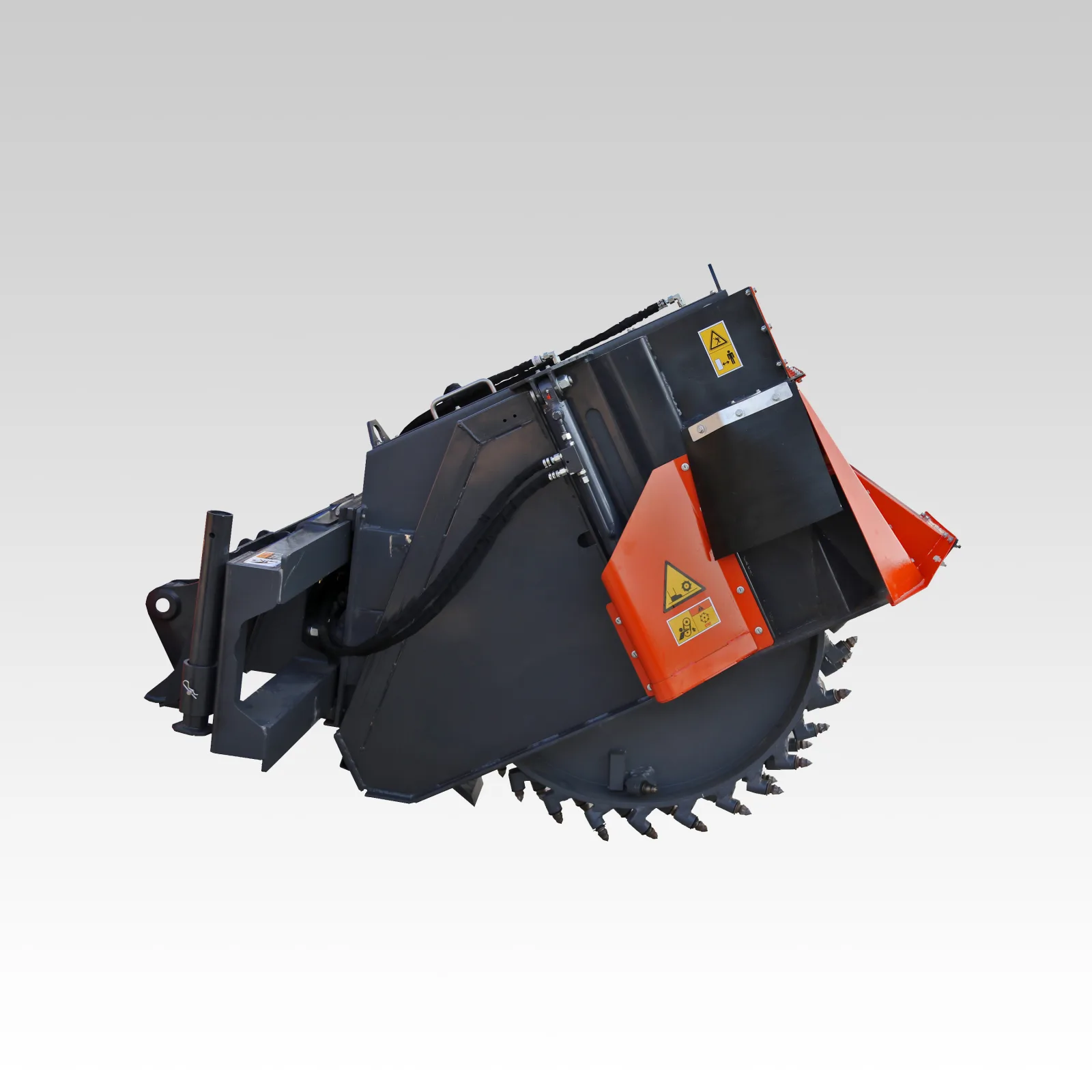

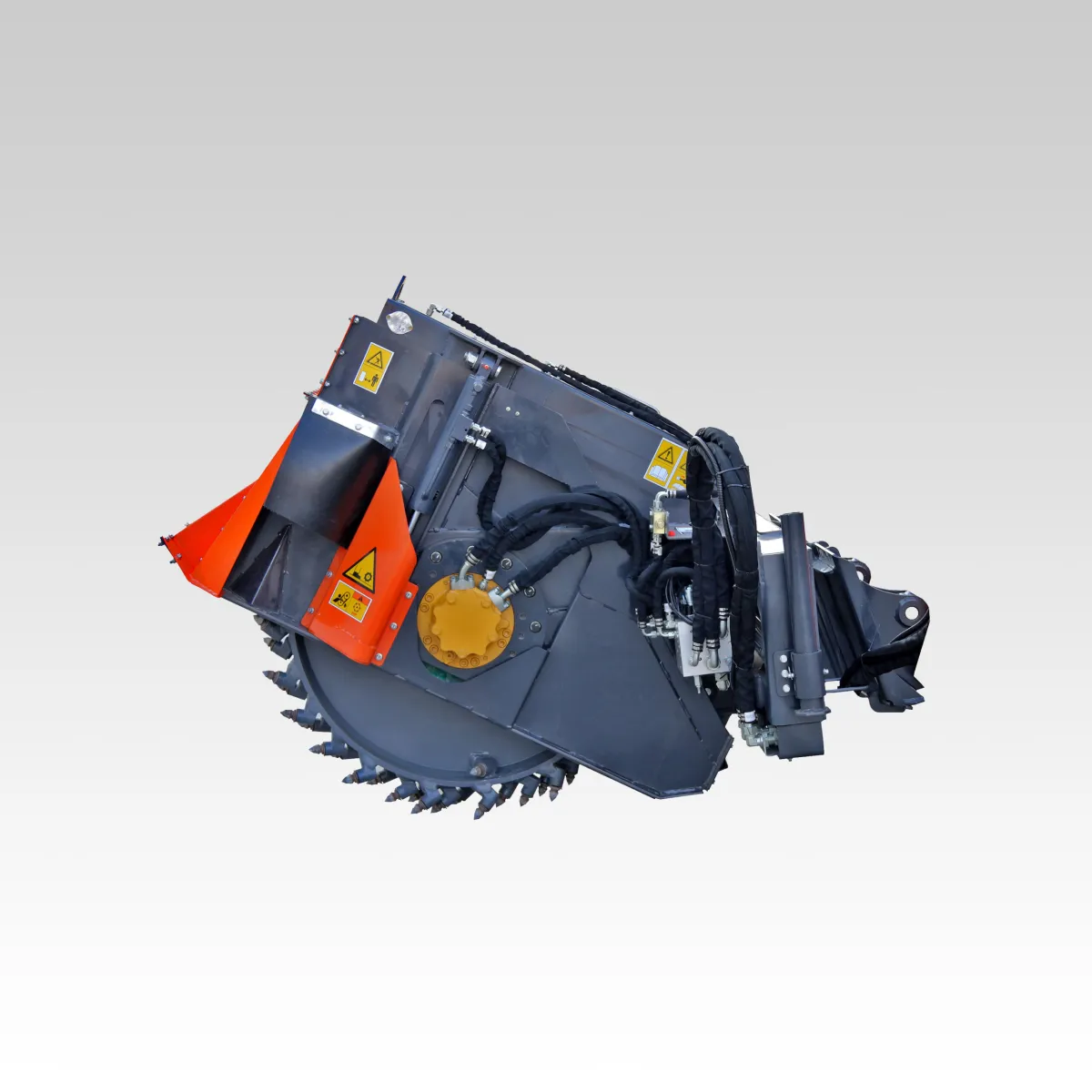

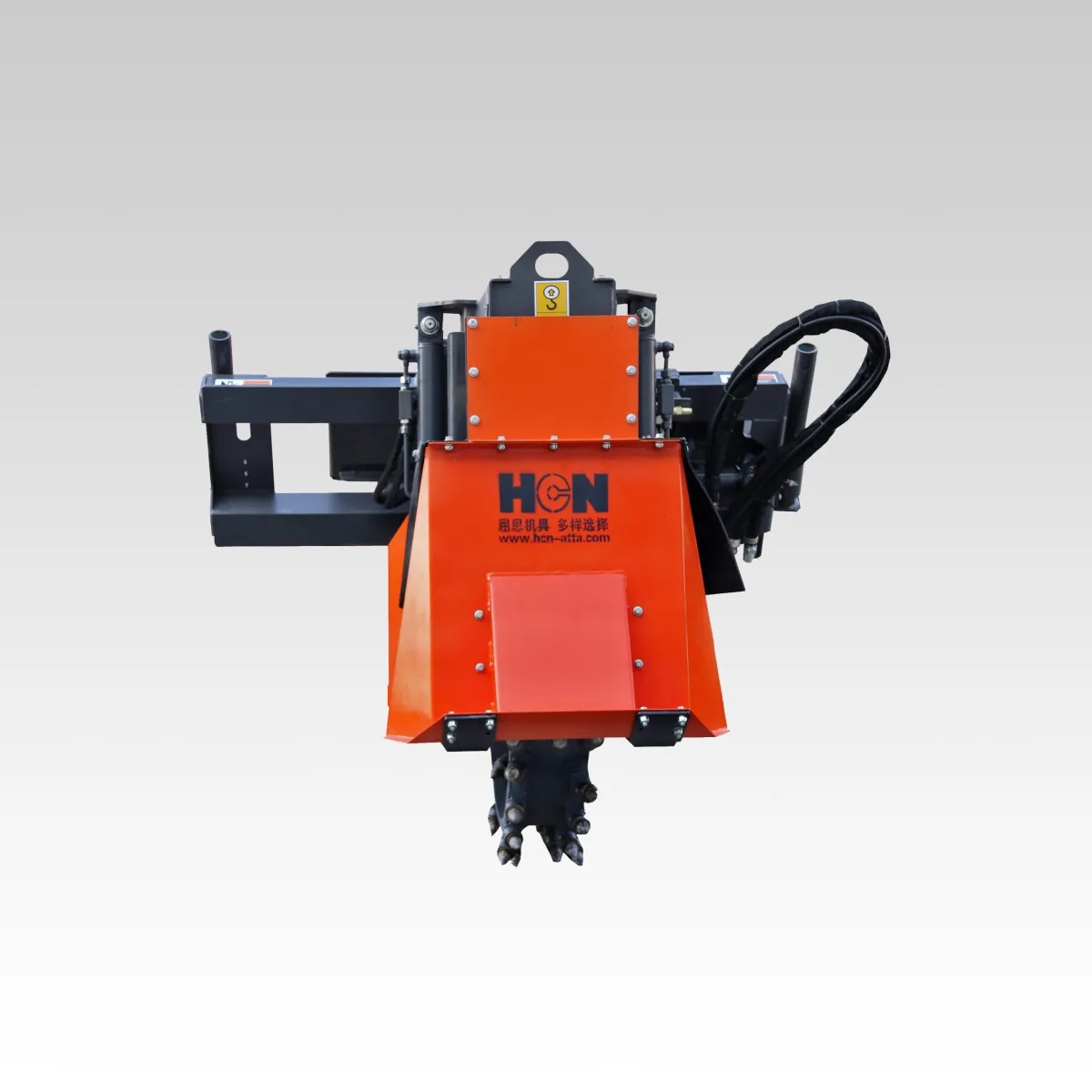

HCN 0305 Disc Trencher: CE-certified trencher for skid steer loaders. Ideal for excavation, demolition, and site preparation. Key specs — Width 1750/1750/1750…
Factory-direct pricing · Responds within 24 hours
Submit RFQ FormThe 0305 Disc Trencher from HCN Attachments Manufacture Co., Ltd is a heavy-duty skid steer / loader attachment engineered for global construction, municipal, and industrial OEM applications.
Typical specifications include Overall Width: 1750 / 1750 · Overall Length: 1940 / 1940 · Overall Height: 1350 / 1450. Mounting interfaces, hydraulic flow, and working width are configurable to your carrier model.
Request technical drawings and an export quote at hcn-atta.com · CE certified · ISO 9001:2015 · worldwide shipping.
| Specification | 030516 | 030518Ⅰ | 030524Ⅰ |
|---|---|---|---|
| Overall Width (mm) | 1750 | 1750 | 1750 |
| Overall Length (mm) | 1940 | 1940 | 2190 |
| Overall Height (mm)Trenching width(mm) | 1350 | 1450 | 1750 |
| Trench Width (mm) | 50-80-100 | 80-100-130-160-200 | 80-100-130-160-200 |
| Cut Depth (mm) | 100-400 | 150-450 | 200-600 |
| Side Shift (mm) | 650 | 650 | 650 |
| Number of Teeth (unit) | 36 | 62 | 96 |
| Weight (incl. Mount) (Kg) | 950 | 1300 | 1450 |
| Maximum Allowable Pressure (MPa) | 25 | 25 | 25 |
| Hydraulic Flow (L/min) | 90-130 | 100-160 | 110-170 |
| Operating Voltage (V)(Optional) | 12/24 | 12/24 | 12/24 |
| Options | Trench cleaner | Trench cleaner | Trench cleaner |
| Compatible Carriers | Skid steer (high-flow system) | Skid steer (high-flow system) | Skid steer (high-flow system) |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
The HCN 0305 Disc Trencher is a construction attachments designed for installation on Skid Steer Loaders. It is manufactured at HCN Attachments' ISO 9001:2015-certified facility in Xuzhou, China, and supplied to contractors, rental fleets, OEM partners, and equipment distributors in more than 60 countries. When sourcing hydraulic breaker, hydraulic hammer, rock breaker, construction attachment, excavator hammer, demolition hammer for export or fleet replacement, verify carrier weight class, hydraulic output, and mounting interface before order confirmation — HCN provides free compatibility checks on request.
HCN hydraulic breakers and construction attachments are engineered for maximum productivity on demolition, rock breaking, and foundation preparation projects. From 0.8-tonne mini-excavators to 90-tonne mining machines, our hydraulic hammers deliver consistent high-impact performance — OEM-fit for Caterpillar, Komatsu, Hitachi, Volvo, Doosan, Hyundai, and 30+ global brands.
Available model designations: 030516, 030518Ⅰ, 030524Ⅰ. Specification values in the table below apply to the listed model range. If your carrier falls outside the published weight class, contact HCN engineering with the machine make, model, operating weight, and pin-to-pin dimensions — custom bracket fabrication is typically available within 15–30 working days.
HCN 0305 Disc Trencher units leave factory with CE conformity documentation, operator manual, and QC records. Standard in-stock configurations ship within 7–15 working days; custom specifications require 15–30 working days. Export terms are quoted FOB Qingdao or Shanghai unless otherwise agreed. Submit an RFQ with your machine model, working conditions, and destination country for pricing, lead time, and bracket fit confirmation.
The 0305 Disc Trencher is specified on the following project types. Each application below reflects real field use — not generic marketing claims.
On this type of project, the 0305 Disc Trencher reduces cycle time compared with manual methods by allowing the operator to work from the carrier cab. Urban demolition and concrete breaking for utility access, road renovation, and site clearance
On this type of project, the 0305 Disc Trencher reduces cycle time compared with manual methods by allowing the operator to work from the carrier cab. Hard rock breaking at quarries, open-pit mines, and tunnel portals using heavy-duty hydraulic hammers
On this type of project, the 0305 Disc Trencher reduces cycle time compared with manual methods by allowing the operator to work from the carrier cab. Foundation trench cutting and building demolition in residential and commercial construction projects
On this type of project, the 0305 Disc Trencher reduces cycle time compared with manual methods by allowing the operator to work from the carrier cab. Secondary rock breaking of oversized boulders at crushing plants and mining operations
On this type of project, the 0305 Disc Trencher reduces cycle time compared with manual methods by allowing the operator to work from the carrier cab. Asphalt and concrete pavement breaking for road rehabilitation and utility access works
Engineering and procurement teams typically evaluate the 0305 Disc Trencher against these design and manufacturing attributes:
Factory-published values for the 0305 Disc Trencher. Confirm final configuration against your carrier data sheet before purchase order release.
| Specification | 030516 | 030518Ⅰ | 030524Ⅰ |
|---|---|---|---|
| Overall Width (mm) | 1750 | 1750 | 1750 |
| Overall Length (mm) | 1940 | 1940 | 2190 |
| Overall Height (mm)Trenching width(mm) | 1350 | 1450 | 1750 |
| Trench Width (mm) | 50-80-100 | 80-100-130-160-200 | 80-100-130-160-200 |
| Cut Depth (mm) | 100-400 | 150-450 | 200-600 |
| Side Shift (mm) | 650 | 650 | 650 |
| Number of Teeth (unit) | 36 | 62 | 96 |
| Weight (incl. Mount) (Kg) | 950 | 1300 | 1450 |
| Maximum Allowable Pressure (MPa) | 25 | 25 | 25 |
| Hydraulic Flow (L/min) | 90-130 | 100-160 | 110-170 |
| Operating Voltage (V)(Optional) | 12/24 | 12/24 | 12/24 |
| Options | Trench cleaner | Trench cleaner | Trench cleaner |
| Compatible Carriers | Skid steer (high-flow system) | Skid steer (high-flow system) | Skid steer (high-flow system) |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
Both configurations deliver the same impact energy when sized correctly. The choice depends on site environment, hose routing, and maintenance access — not performance rating.
| Selection Criteria | Top-Type (Box-Type) | Side-Type |
|---|---|---|
| Hose protection | Ports routed through top — hoses protected from falling debris | Side ports — easier access but higher hose wear in demolition |
| Best application | Urban demolition, quarry bench breaking, overhead work | General construction, easy on-site hose replacement |
| Maintenance access | Requires lifting for some seal service points | Side access simplifies field seal kit replacement |
| Procurement note | Preferred when carrier works under overhead obstacles | Lower initial cost; specify if hose guards are required |
Hand-held breakers suit small repair zones. Machine-mounted hydraulic breakers are specified when daily breaking volume, rock hardness, or operator exposure limits manual tool productivity.
| Method | Manual / Conventional Approach | HCN Attachment |
|---|---|---|
| Typical use | Hand-held pneumatic or electric breakers — limited to 2–4 hours operator duty, low volume, small demolition zones | Excavator- or loader-mounted hydraulic breaker — continuous duty, 3–7× higher daily output, operator remains in cab |
| When to specify | Specify a hydraulic breaker when breaking volume exceeds 20 m³/day, rock hardness exceeds 50 MPa UCS, or site safety rules restrict manual vibration exposure | |
When reviewing Construction Attachments for a purchase decision, these parameters determine whether the unit will perform on your site:
The HCN 0305 Disc Trencher is engineered for Skid Steer Loaders within HCN's rated weight and hydraulic output range. Send your exact carrier make, model, and pin-to-pin dimensions for a free compatibility confirmation before order placement. OEM-fit brackets are available for Caterpillar, Komatsu, Hitachi, Volvo, Doosan, Bobcat, and 30+ brands.
A hydraulic breaker (also called a hydraulic hammer, rock breaker, or demolition hammer) is a construction attachment powered by the carrier's hydraulic system. High-pressure oil drives a steel piston that strikes a tool — chisel, moil, or blunt — delivering hundreds of blows per minute to break rock, concrete, frozen ground, or asphalt. HCN breakers use a nitrogen-charged accumulator to boost impact energy and reduce pressure spikes back to the carrier.
HCN hydraulic breakers are engineered to OEM dimensional fit for Caterpillar (Cat), Komatsu, Hitachi, Volvo, Doosan, Hyundai, CASE, John Deere, Liebherr, Sany, XCMG, Kobelco, Bobcat, and 30+ other brands. Custom bracket fabrication is available for non-standard carriers within 15 working days.
The carrier operating weight is the primary sizing factor. As a rule of thumb, breaker weight should be 3–7% of excavator operating weight. For example, a 20-tonne excavator suits a 600–1,400 kg breaker. Always verify that the carrier's hydraulic output (pressure and flow rate) meets the breaker's minimum requirements — contact HCN for a free compatibility check.
Top-type (box-type) breakers route hydraulic ports through the top of the housing, protecting hoses from falling debris and reducing hose wear in demolition environments. Side-type breakers have ports on the side, which makes hose routing and on-site servicing easier. HCN offers both configurations — top-type is preferred for urban demolition and quarry applications.
All HCN hydraulic breakers carry a 12-month or 1,000-hour warranty against manufacturing defects, whichever comes first. Genuine seal kits and wearing parts are stocked for express international shipping. Extended warranty and maintenance contracts are available for OEM volume orders.
21,000 m² manufacturing campus in Xuzhou ETDZ — CNC laser cutting, robotic welding, in-house heat treatment, and PLM-controlled production. 400+ models, 500+ patents, export to 60+ countries.
Tour our factory →ISO 9001:2015, ISO 14001, ISO 45001, CE conformity on export lines, and National High-Tech Enterprise status. Full documentation available for tender and OEM audit submissions.
View certifications →Documented deployments: highway compaction in Southeast Asia, airport snow management in Northern Europe, and open-pit rock breaking in Australia — with measurable results.
Read case studies →Not sure which attachment fits your machine? Read our selection guide · Procurement FAQ
Include your machine model, working conditions, and destination country — our sales engineers respond within 24 business hours with pricing, lead time, and bracket fit confirmation.
