Pothole and utility cut patching with hot
Pothole and utility cut patching with hot-mix or cold-patch asphalt
0222 Asphalt Paver
CE-certified asphalt paver attachment for Skid Steer Loaders — confirm carrier fit, hydraulic requirements, and configuration with HCN engineering.
Models: 022212
Compatible Carriers: Skid Steer Loaders
Category:
Municipal & Road Maintenance
HCN 0222 Asphalt Paver — CE-certified asphalt paver attachment for export. Request specs, lead time and FOB quote.
CE Certified
ISO 9001:2015
HCN Manufactured
60+ Countries
Get a Free Quote
Factory-direct pricing · Responds within 24 hours
Submit RFQ Form
CE Certified
ISO 9001:2015
60+ Countries
Product Video

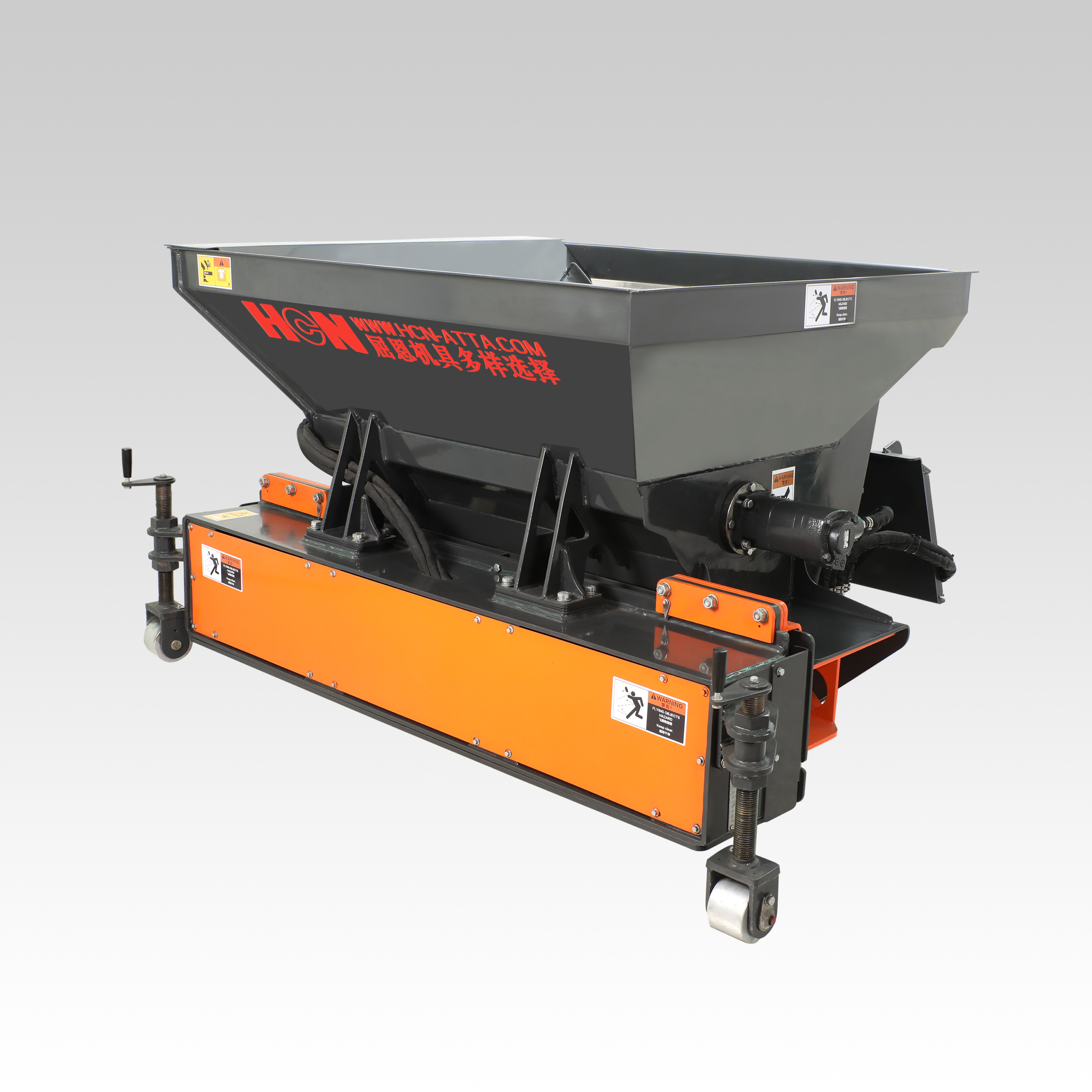

The 0222 Asphalt Paver from HCN Attachments Manufacture Co., Ltd is a heavy-duty skid steer / loader attachment engineered for global construction, municipal, and industrial OEM applications.
Typical specifications include Overall Width: 1850 · Overall Length: 1460 · Overall Height: 1240. Mounting interfaces, hydraulic flow, and working width are configurable to your carrier model.
Request technical drawings and an export quote at hcn-atta.com · CE certified · ISO 9001:2015 · worldwide shipping.
Technical Specifications
| Specification | Value / Range |
|---|---|
| Overall Length (mm) | 1460 |
| Overall Width (mm) | 1850 |
| Overall Height (mm) | 1240 |
| Paving Width (mm) | 300-1200 |
| Paving Depth (mm) | 0-120 |
| Hopper Capacity (m³) | 1.2 |
| Rotor Diameter (mm) | 285 |
| Reference Weight (Mounting hardware included)(Kg) | 900 |
| Maximum Allowable Pressure (MPa) | 18 |
| Hydraulic Flow (L/min) | 60-85 |
| Operating Voltage (V)(Optional) | 12/24 |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
What Is the 0222 Asphalt Paver?
The HCN 0222 Asphalt Paver is a asphalt paver attachment for Skid Steer Loaders. Confirm the carrier model, mounting interface, hydraulic flow and operating pressure before ordering; HCN engineering provides a fitment check against the submitted machine data.
HCN asphalt paver attachments for skid steers and loaders support municipal patching, driveway overlays, and small-area resurfacing where a full paving train is impractical. Units are CE-certified with configurable paving width and hopper capacity for export contractors.
Models covered on this page: 022212. Use the specification table above to compare published values, then request confirmation for the final configuration.
0222 Asphalt Paver Applications & Use Cases
Typical applications for this attachment type include:
Driveway, parking bay, and sidewalk
Driveway, parking bay, and sidewalk overlay where full pavers cannot access
Municipal maintenance crews completing small
Municipal maintenance crews completing small resurfacing jobs between major contracts
Rental fleets offering asphalt repair
Rental fleets offering asphalt repair packages with skid steer carriers
0222 Asphalt Paver Carrier Compatibility
- Compatible carriers
- Skid Steer Loaders
- OEM brands supported
- Fitment is confirmed from the carrier make, model, mounting dimensions, operating weight and auxiliary hydraulic data supplied with the RFQ.
- Published carrier group: Skid Steer Loaders.
- Send carrier make, model, operating weight, coupler type and mounting dimensions for confirmation before PO release.
- Model range covered on this page: 022212.
Asphalt Paver Attachment vs. Hand Raking / Plate Compactor Only
Hand raking suits very small patches. A paver attachment improves thickness control and finish quality on larger municipal repair zones.
| Selection Criteria | Paver Attachment | Hand Methods |
|---|---|---|
| Finish quality | Screeded mat with controlled width | Variable thickness; labour intensive |
| Best application | Patches, driveways, small overlays | Spot potholes under ~1 m² |
| Crew size | One operator on carrier | Multiple labourers for rake and compact |
How to Read Asphalt Paver Attachment Specifications
Use these parameters together with the published specification table and your carrier data:
- Paving Width (mm)
- Working width of the screed. Narrower widths suit patch repair; wider widths raise productivity on continuous lanes within carrier hydraulic limits.
- Paving Depth (mm)
- Lift thickness the screed can place and finish. Confirm against your mix design and compaction plan.
- Hopper Capacity (m³)
- Affects cycle time between dump truck reloads. Larger hoppers reduce waiting on small patch routes.
- Hydraulic Flow
- Must support conveyor/screed functions without starving other carrier circuits.
0222 Asphalt Paver — Frequently Asked Questions
The 0222 Asphalt Paver is listed for Skid Steer Loaders. Final fitment must be checked against the carrier make, model, operating weight, coupler type, mounting dimensions, auxiliary hydraulic flow and pressure before production.
This page covers model designation 022212. Compare the model columns in the specification table and request confirmation for the exact configuration included in your quotation.
The published values are Maximum Allowable Pressure (MPa): 18; Hydraulic Flow (L/min): 60-85; Operating Voltage (V)(Optional): 12/24. Confirm that the carrier circuit stays within these model-specific limits; ask HCN to verify any value that varies by model.
Key published working values include Paving Width (mm): 300-1200; Paving Depth (mm): 0-120; Hopper Capacity (m³): 1.2; Rotor Diameter (mm): 285. Use the full table for model-by-model values and confirm the required operating condition in the RFQ.
Published transport and installation data include Overall Length (mm): 1460; Overall Width (mm): 1850; Overall Height (mm): 1240; Reference Weight (Mounting hardware included)(Kg): 900. Check the selected model against carrier capacity, transport limits and site access.
Factory Strength
21,000 m² manufacturing campus in Xuzhou ETDZ — CNC laser cutting, robotic welding, in-house heat treatment, and PLM-controlled production. 400+ models, 500+ patents, export to 60+ countries.
Tour our factory →Certifications
ISO 9001:2015, ISO 14001, ISO 45001, CE conformity on export lines, and National High-Tech Enterprise status. Full documentation available for tender and OEM audit submissions.
View certifications →Fitment Review
Before production, HCN checks the submitted carrier model, mounting dimensions, operating weight, hydraulic flow and pressure against the requested configuration.
Submit machine details →Need help confirming fitment? Procurement FAQ
Factory-Direct Inquiry
Get a Quote for 0222 Asphalt Paver
Include your machine model, working conditions, and destination country — our sales engineers respond within 24 business hours with pricing, lead time, and bracket fit confirmation.
