Pothole and utility-cut preparation
Pothole and utility-cut preparation before asphalt repair
0206 Cold Planer
CE-certified cold planer attachment for Skid Steer Loaders — confirm carrier fit, hydraulic requirements, and configuration with HCN engineering.
Models: 020612 · 020618 · 020620 · 020624
Compatible Carriers: Skid Steer Loaders
Category:
Municipal & Road Maintenance
HCN 0206 Cold Planer — CE-certified cold planer attachment for Skid Steer Loaders. OEM-fit brackets, ISO 9001 quality. Request specs, lead time and FOB quote.
CE Certified
ISO 9001:2015
HCN Manufactured
60+ Countries
Get a Free Quote
Factory-direct pricing · Responds within 24 hours
Submit RFQ Form
CE Certified
ISO 9001:2015
60+ Countries
Product Video

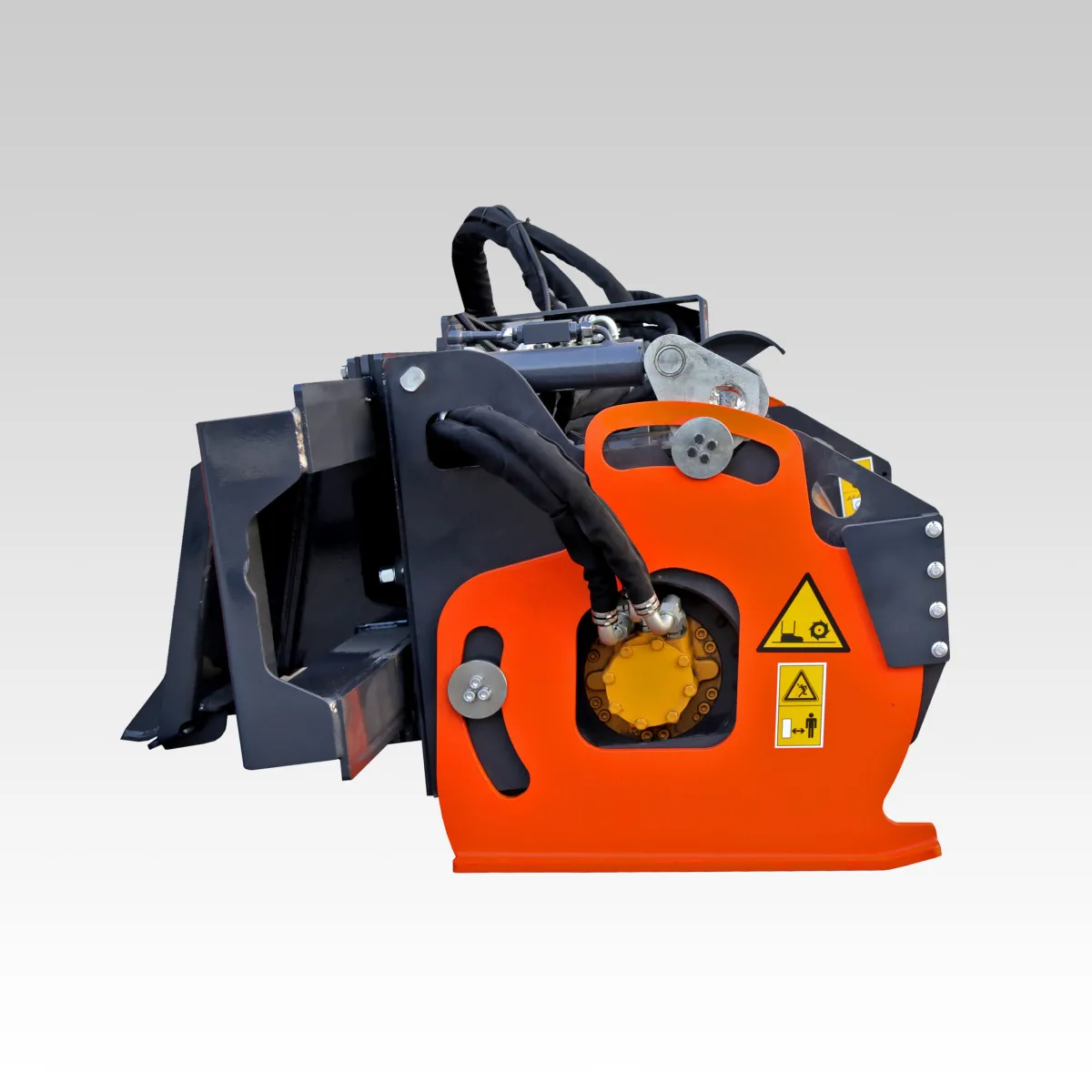

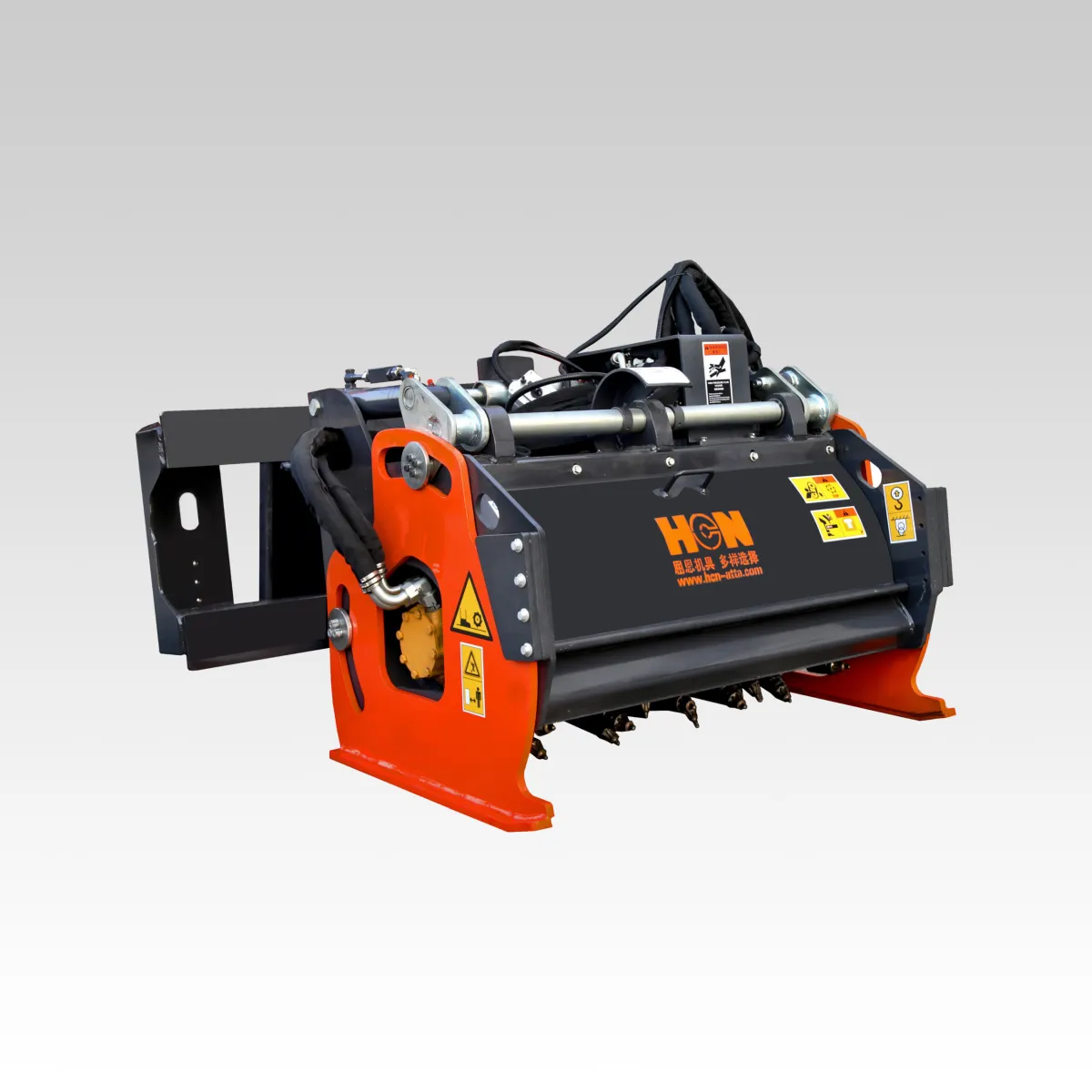

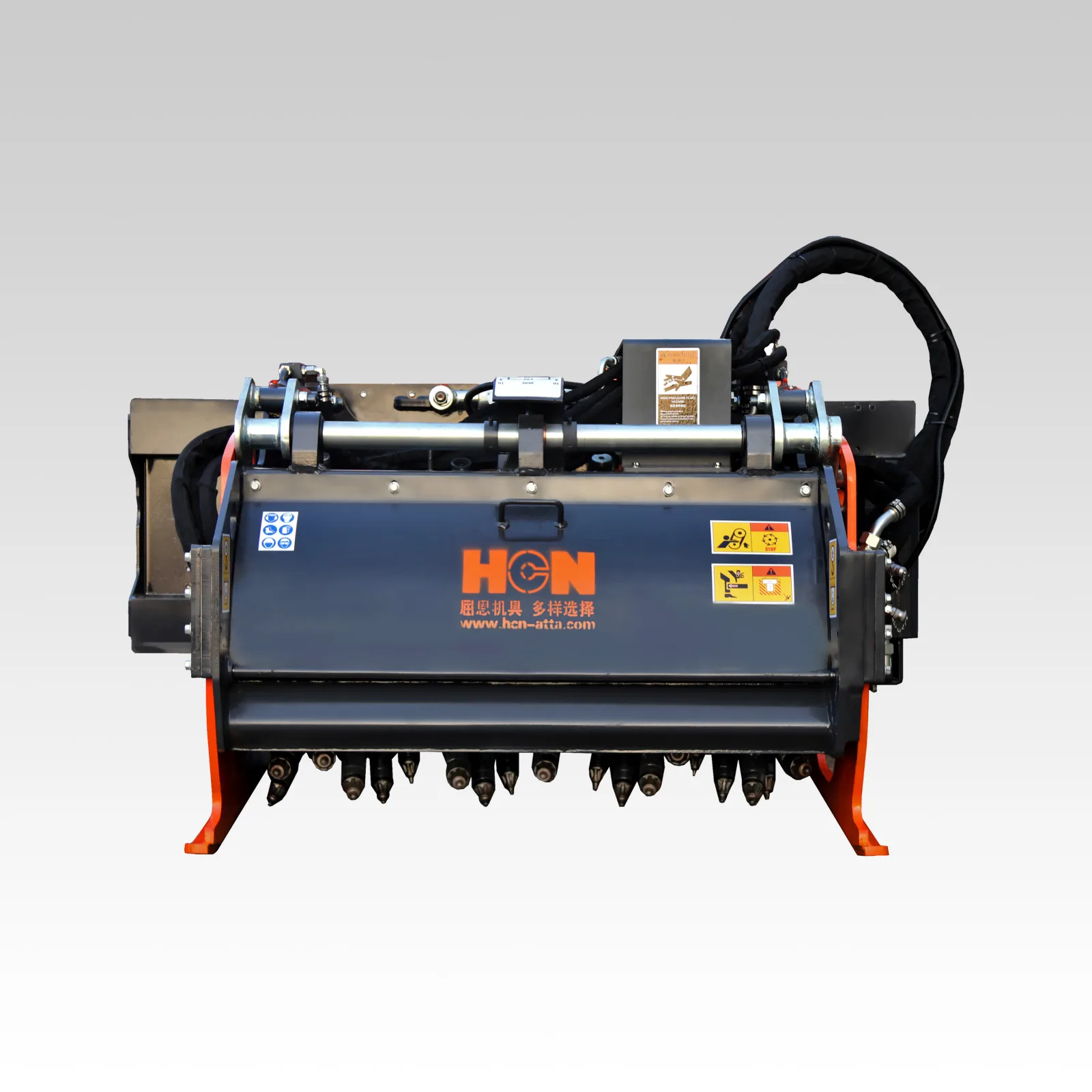

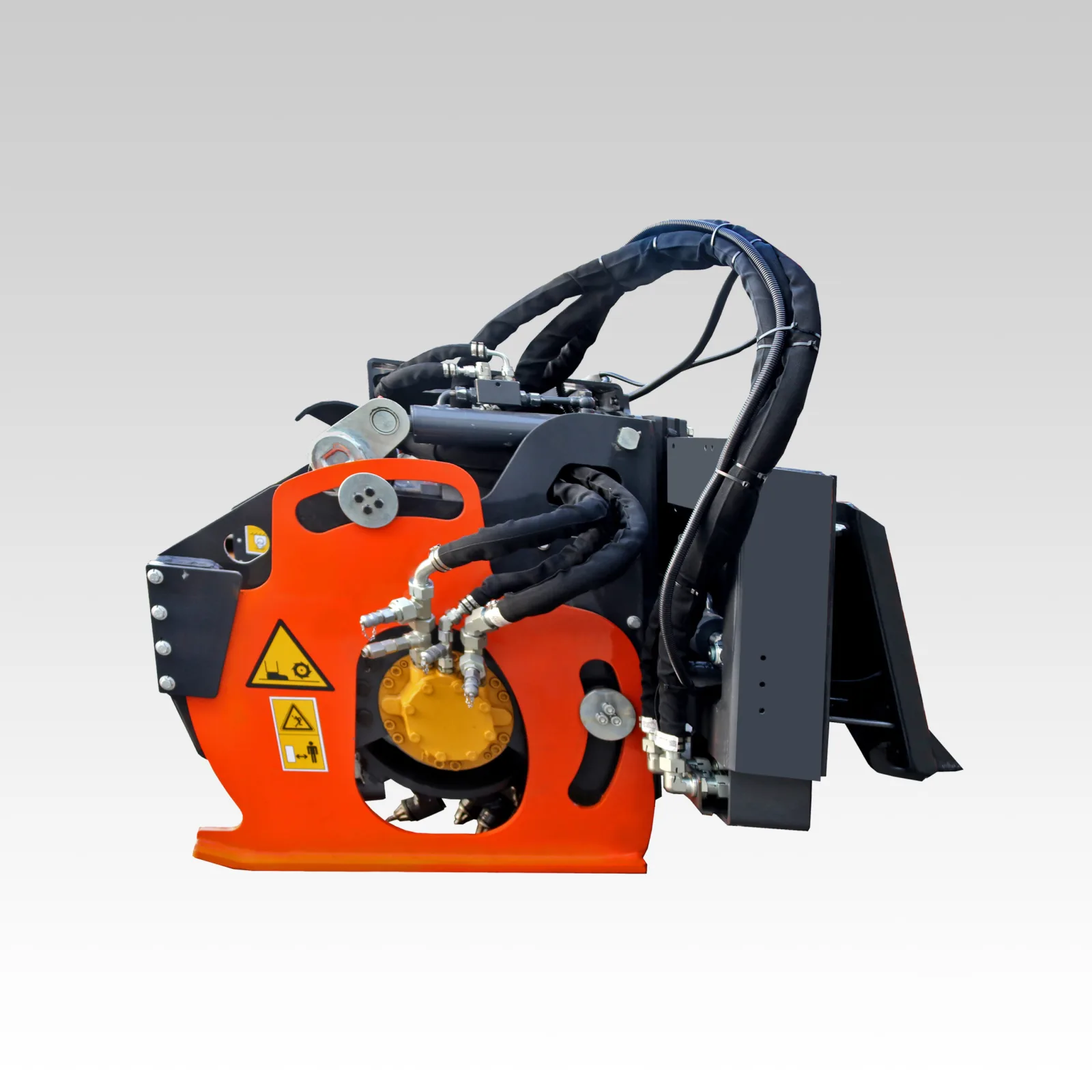

The 0206 Cold Planer from HCN Attachments Manufacture Co., Ltd is a heavy-duty skid steer / loader attachment engineered for global construction, municipal, and industrial OEM applications.
Typical specifications include Overall Width: 1727 / 1727 · Overall Length: 1376 / 1376 · Overall Height: 935 / 935. Mounting interfaces, hydraulic flow, and working width are configurable to your carrier model.
Request technical drawings and an export quote at hcn-atta.com · CE certified · ISO 9001:2015 · worldwide shipping.
Technical Specifications
| Specification | 020612 | 020618 | 020620 | 020624 |
|---|---|---|---|---|
| Overall Length (mm) | 1376 | 1376 | 1376 | 1376 |
| Overall Width (mm) | 1727 | 1727 | 1727 | 1727 |
| Overall Height (mm) | 935 | 935 | 935 | 935 |
| Milling Width (mm) | 300 | 450 | 500 | 600 |
| Maximum Milling Depth (mm) | 150 | 150 | 150 | 150 |
| Maximum Side Shift (mm) | 600 | 600 | 600 | 600 |
| Hydraulic Flow (l/min) | 120-140 | 130-140 | 130-140 | 130-140 |
| Maximum Allowable Pressure (MPa) | 21 | 21 | 21 | 21 |
| Operating Voltage (V)(Optional) | DC12/24 | DC12/24 | DC12/24 | DC12/24 |
| Weight (incl. Mount) (Kg) | 830 | 925 | 950 | 1010 |
| Optional Accessories | Optional tooth replacement tool | Optional tooth replacement tool | Optional tooth replacement tool | Optional tooth replacement tool |
| Compatible Carriers | Skid steer (high-flow) | Skid steer (high-flow) | Skid steer (high-flow) | Skid steer (high-flow) |
Specifications may vary by model. Custom configurations available. Request exact spec sheet →
What Is the 0206 Cold Planer?
The HCN 0206 Cold Planer is a cold planer attachment for Skid Steer Loaders. Confirm the carrier model, mounting interface, hydraulic flow and operating pressure before ordering; HCN engineering provides a fitment check against the submitted machine data.
HCN cold planer attachments use a hydraulically driven milling drum for controlled removal of asphalt or concrete surfaces. Published milling width, maximum depth, side shift, hydraulic flow and pressure vary by model and must be matched to the carrier.
Models covered on this page: 020612, 020618, 020620, 020624. Use the specification table above to compare published values, then request confirmation for the final configuration.
0206 Cold Planer Applications & Use Cases
Typical applications for this attachment type include:
Controlled surface removal
Controlled surface removal before resurfacing or overlay work
Milling close to curbs where
Milling close to curbs where the specified model provides side shift
0206 Cold Planer Carrier Compatibility
- Compatible carriers
- Skid Steer Loaders
- OEM brands supported
- Fitment is confirmed from the carrier make, model, mounting dimensions, operating weight and auxiliary hydraulic data supplied with the RFQ.
- Published carrier group: Skid Steer Loaders.
- Send carrier make, model, operating weight, coupler type and mounting dimensions for confirmation before PO release.
- Model range covered on this page: 020612, 020618, 020620, 020624.
How to Read Cold Planer Attachment Specifications
Use these parameters together with the published specification table and your carrier data:
- Milling Width (mm)
- The material width removed in one pass. Confirm that carrier flow and operating weight are suitable for the selected width.
- Maximum Milling Depth (mm)
- The published maximum cutting depth for the model. Actual pass depth depends on pavement condition and carrier performance.
- Maximum Side Shift (mm)
- The lateral movement available for positioning the drum relative to the carrier.
- Hydraulic Flow (L/min)
- The carrier auxiliary flow must stay within the model range shown in the specification table.
- Maximum Pressure (MPa)
- Do not exceed the attachment pressure rating shown for the selected model.
0206 Cold Planer — Frequently Asked Questions
The 0206 Cold Planer is listed for Skid Steer Loaders. Final fitment must be checked against the carrier make, model, operating weight, coupler type, mounting dimensions, auxiliary hydraulic flow and pressure before production.
This page covers model designations 020612, 020618, 020620, 020624. Compare the model columns in the specification table and request confirmation for the exact configuration included in your quotation.
The published values are Hydraulic Flow (l/min): 120-140 / 130-140 / 130-140 / 130-140; Maximum Allowable Pressure (MPa): 21 / 21 / 21 / 21; Operating Voltage (V)(Optional): DC12/24 / DC12/24 / DC12/24 / DC12/24. Confirm that the carrier circuit stays within these model-specific limits; ask HCN to verify any value that varies by model.
Key published working values include Milling Width (mm): 300 / 450 / 500 / 600; Maximum Milling Depth (mm): 150 / 150 / 150 / 150; Maximum Side Shift (mm): 600 / 600 / 600 / 600. Use the full table for model-by-model values and confirm the required operating condition in the RFQ.
Published transport and installation data include Overall Length (mm): 1376 / 1376 / 1376 / 1376; Overall Width (mm): 1727 / 1727 / 1727 / 1727; Overall Height (mm): 935 / 935 / 935 / 935; Weight (incl. Mount) (Kg): 830 / 925 / 950 / 1010. Check the selected model against carrier capacity, transport limits and site access.
